Home / Examples / Coupled Analysis / Electric-Thermal Analysis [Coulomb/Watt] / Example 3: Heating of Conductive Strip (Restart the Transient Analysis)
Modify the tab setting of the example 2 and restart the transient analysis.
The simulation results of further extended timelines have been obtained.
There are no changes in the other conditions.
Results will vary depending on Femtet version and the PC environment.
After the example 2 is completed, change the tab setting as follows.
The model shape, the body attributes, the material properties and the boundary conditions remain the same as the example 2.
Tabs |
Setting Item |
Settings |
Transient Analysis |
Timestep |
Manual |
Restart |
Select [Continue from the last session] |
|
Timestep |
1.0-2 [s] |
|
Calculation Steps |
10 |

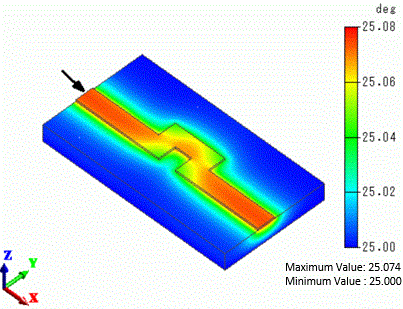

The temperature distribution at elapsed time 0.110 [s] is shown below.
The temperature is slightly higher than that of the example 2 at elapsed time 0.010 [s].

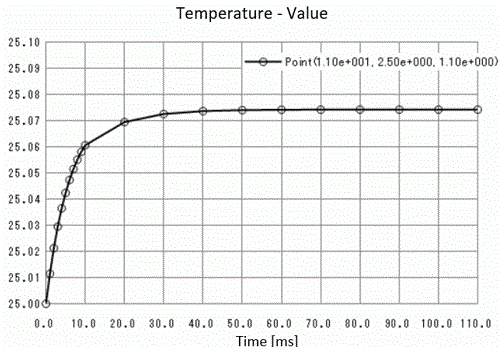

The temperature at the point indicated by arrow in the figure above is plotted for the specified time period.
The plots from 0 to 10 [ms] come from the result of example 2.
The plots from 10 to 110 [ms] come from the result of example 3.
