The magnetic field created by electromagnet consisting of loop coil and magnetic core is analyzed here.
The vectors of the current density, the magnetic field and the magnetic flux density are solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Magnetic Analysis [Gauss] |
Analysis Type |
Static Analysis |
Options |
N/A |

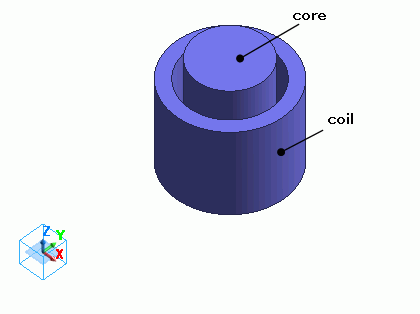

A loop coil (coil) and a cylindrical magnetic core (core) are placed.
Body Number/Type |
Body Attribute Name |
Material Name |
0/Solid |
core |
core |
1/Solid |
coil |
008_Cu * |
* Available from the material DB
The material properties are set up as follows:
Material Name |
Tab |
Properties |
core |
Permeability |
Relative Permeability 5×103 |
Body attribute is set up as follows to apply current to the loop coil.
Body Attribute Name |
Tab |
Settings |
coil |
Current |
Waveform: Constant Current: 1 [A] Turns: 100 [Turns] Direction: Loop Coil/Magnetic Field Direction Specified Magnetic Field Vector: X=0, Y=0, Z=1 |
No setting.
Shown below are the vectors of the current density flowing through the loop coil.

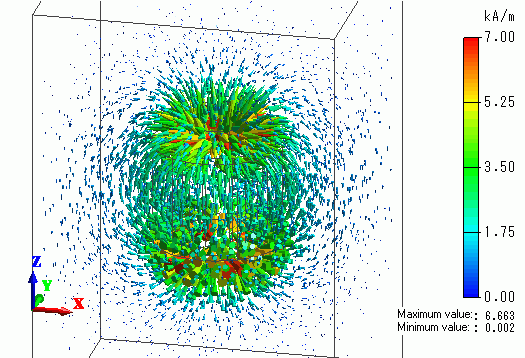

The vectors of the magnetic field are shown below.

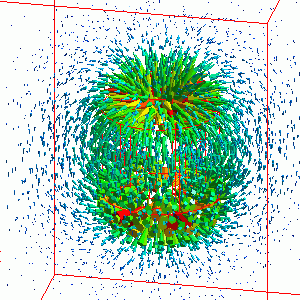

The vectors of the magnetic flux density are shown below.
