The inductance of a loop coil is solved.
The vectors of the magnetic field and the magnetic flux density are also solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Magnetic Analysis [Gauss] |
Analysis Type |
Static Analysis |
Options |
N/A |
A body of loop coil (coil) is defined.
Body Number/Type |
Body Attribute Name |
Material Name |
0/Solid |
Coil |
008_Cu * |
* Available from the material DB
Body attribute is set up as follows to apply current to the loop coil.
Body Attribute Name |
Tab |
Settings |
Coil |
Current |
Waveform: Constant Current: 1 [A] Turns: 1 [Turns] Direction: Loop Coil/Magnetic Field Direction: Magnetic Field Vector: X=0, Y=0, Z=1 |
No setting.
To see the results of inductance calculation, go to the [Results] tab
and click [Table]
.

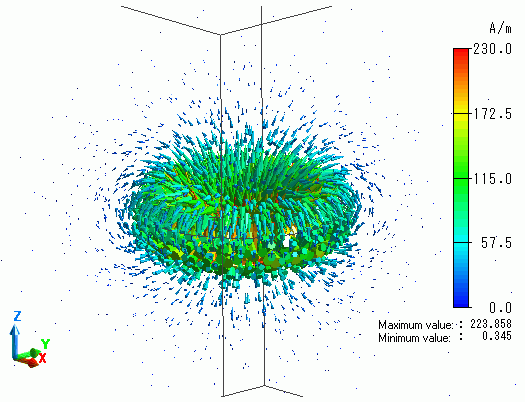

The vectors of the magnetic field are shown below.
The magnetic field inside coil is directing the negative Z direction.
The vectors of the current density are shown below.
The current is flowing as set for the coil.
