An anisotropic magnetic material is placed in the air.
The vectors of the magnetic field and the magnetic flux density are solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Magnetic Analysis [Gauss] |
Analysis Type |
Static Analysis |
Options |
N/A |
Set the external magnetic field in the Z direction.
Tab |
Setting Item |
Settings |
External Magnetic Field |
External Magnetic Field |
X=0, Y=0, Z=1 [A/m] |

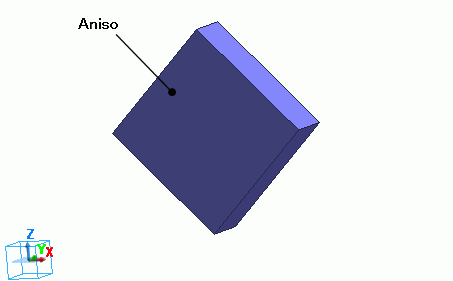

A body with anisotropic permeability (Aniso) is placed in a slanting position.
Body Number/Type |
Body Attribute Name |
Material Name |
1/Solid |
Aniso |
Aniso |
* Available from the material DB
The anisotropic permeability is set as follows.
Material Name |
Tab |
Settings |
|||||||||
Aniso |
Permeability |
Anisotropy: Select [Anisotropic]. [Relative Permeability Matrix] Setting
|
When you set the external magnetic field, select magnetic wall as outer boundary condition.
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
Outer Boundary Condition |
Electric |
Magnetic Wall |
|

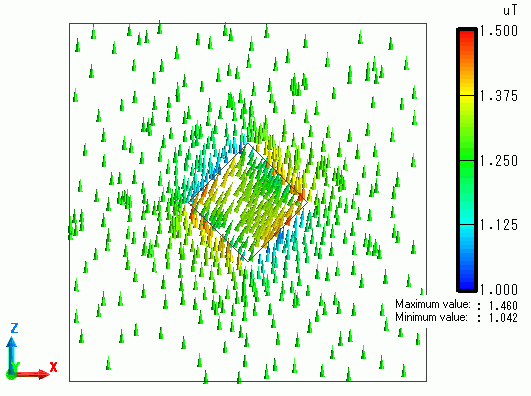

The vectors of the magnetic flux density at XZ section are shown below.

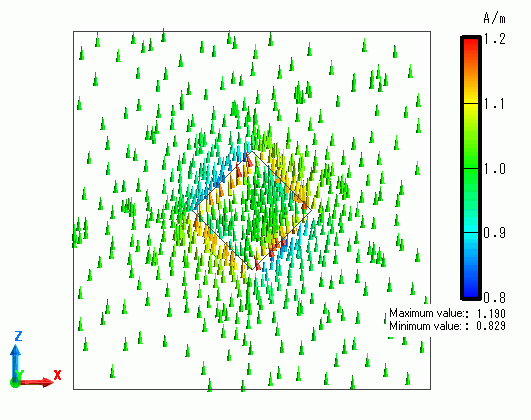

The vectors of the magnetic field at XZ section are shown below.
