Home / Examples / Magnetic Analysis (Gauss, Static Analysis/Harmonic analysis) / Example 22: Magnetic Field around Cathode
Magnetic field around the cathode of a sputtering machine is analyzed.
The vectors of the magnetic field and the magnetic flux density are solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Magnetic Analysis [Gauss] |
Analysis Type |
Static Analysis |
Options |
N/A |
A yoke and multiple magnets are defined.
As the model is symmetric, a one-fourth part is analyzed.
Body Number/Type |
Body Attribute Name |
Material Name |
22/Solid |
Yoke |
Yoke |
9/Solid |
MagOut |
Mag |
10/Solid |
MagOut |
Mag |
11/Solid |
MagOut |
Mag |
17/Solid |
MagOut |
Mag |
18/Solid |
MagOut |
Mag |
19/Solid |
MagOut |
Mag |
21/Solid |
MagCenter |
Mag |
* Available from the material DB
The material properties are set up as follows:
Material Name |
Tab |
Properties |
Mag |
Permeability |
Material Type: Permanent Magnet |
Magnet |
Magnetization Strength: 1.0 |
The material properties are set up as follows:
Body Attribute Name |
Tab |
Settings |
MagOut |
Direction |
Vector: X=0.0, Y=0.0, Z=-1.0 |
MagCenter |
Direction |
Vector: X=0.0, Y=0.0, Z=1.0 |
The model is 1/4 symmetric. Symmetric boundary is applied to two faces of symmetry.
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Setting |
Sym1/Face |
Symmetry/Continuity |
Face of Symmetry |
|
Sym2/Face |
Symmetry/Continuity |
Face of Symmetry |
|

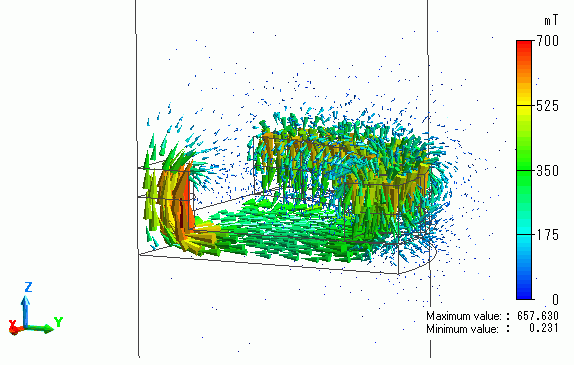

The vectors of the magnetic flux density are shown below.
The magnetic flux originated from the magnet, placed in the peripheral, flows through the yoke into the magnet in the center.

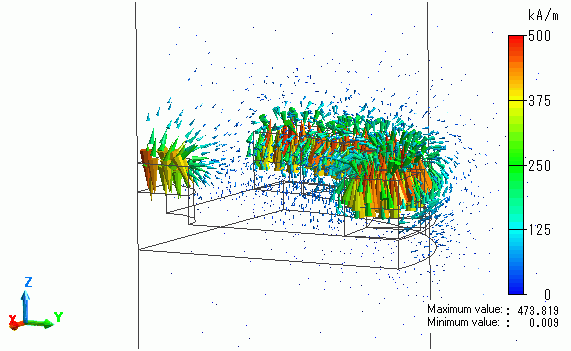

The vectors of the magnetic field are shown below.
