The current induced in a wire-wound Inductor is analyzed.
The current distribution and the resistance are solved.
This will be an axisymmetric analysis.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
Axisymmetric |
Model Unit |
mm |
Item |
Settings |
Solver |
Magnetic Analysis [Gauss] |
Analysis Type |
Harmonic Analysis |
Options |
Deselect Inductance Calculation. |
The frequency is swept from 1MHz to 10MHz in 1MHz interval.
Tab |
Setting Item |
Settings |
Harmonic analysis |
Frequency |
Minimum: 1×106 [Hz] Maximum: 10x106 [Hz] |
Sweep Type |
Linear Step by Division Number: Division 9 |
The axisymmetric analysis is performed. For a model which is symmetric around Z axis,
the simulation is done for the X-Z section only. It is virtually 2D analysis.
The calculation is much faster than 3D analysis.
The model in this example is especially complex with many wound wires.
It is practically impossible to analyze such a complex model in 3D. The axisymmetric analysis is necessary.

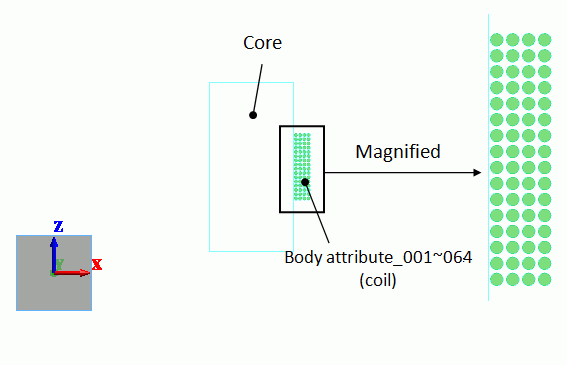

A core is placed in center, and the coil is wound on the core.
The coil is formed by 16 turns in Z direction and 4 layers in X direction. It is 64 turns in total.
The right half section of the model is analyzed.
Body Number/Type |
Body Attribute Name |
Material Name |
Mesh Size |
0-63/Sheet 65/Sheet |
Body_Attribute_001 to 064 CORE |
008_Cu * CORE |
0.01
|
* Available from the material DB
Set the current as follows.
Body Attribute Name |
Tab |
Settings |
Body_Attribute_001 to 064 |
Current |
Waveform: AC Current: 1 [A] Turns: 1 [Turns] Direction: +Y direction |
No setting.
The following are solved.
1) Magnetic flux lines
2) Current density distribution
3) Frequency response of the inductor's resistance
4) Inductance
1) Magnetic flux lines

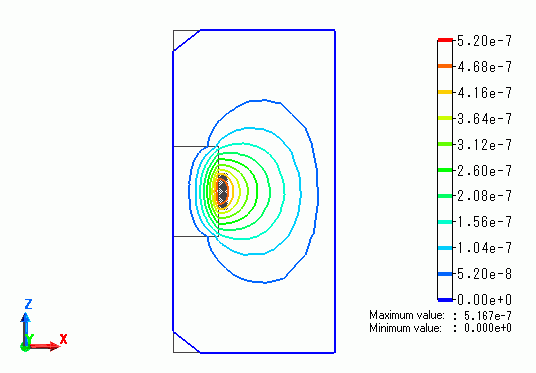

The figure below shows the magnetic flux lines at 10MHz.
2) Current density distribution

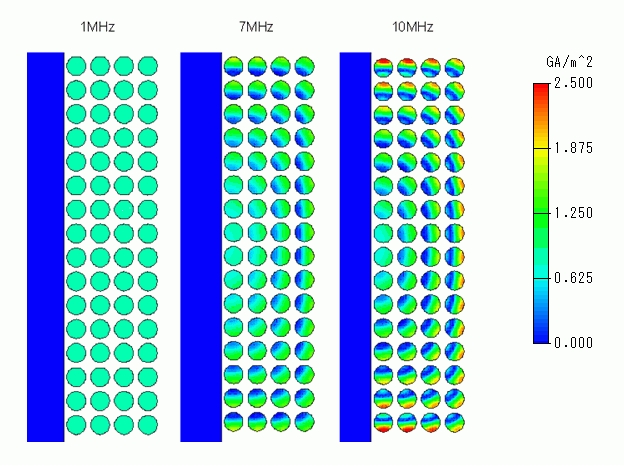

The figure below shows the current distribution. The current flows uniformly at 1MHz. At higher frequencies, the current flows unevenly especially in the outer windings.
3) Frequency response of the inductor's resistance

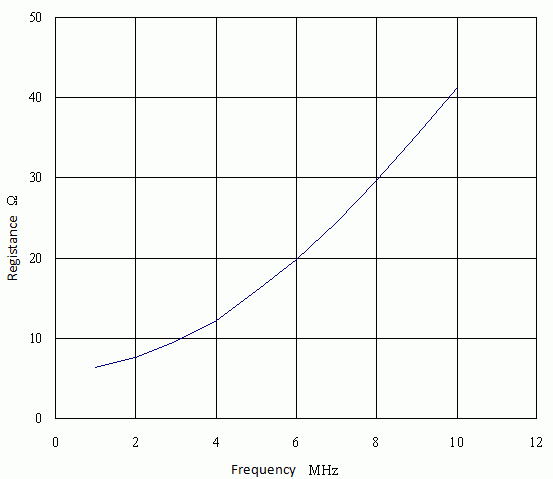

The chart below is the inductor's resistance. It is higher at higher frequency.
How to calculate the resistance
As the analysis results, the loss P [W] is displayed on the output window or on the table.
P = 1/2*R*I*I and I = 1 [A] (peak value). Therefore, R is given as R = 2*P.
4) Inductance
The inductance is calculated from the magnetic energy of the table. The magnetic energy Em, the current I and the inductance L satisfy the equation
Em = 1/2*L*I*I. At current of 1 [A], the magnetic field energy is calculated to be 1.563e-5 [J],
which gives L = 31.26 [uH].
