Example 1: Microwave Oven




General



Analysis Space

Item

Settings

Analysis Space

3D

Model Unit

mm



Analysis Conditions

Item

Settings

Solver

Electromagnetic Analysis [Hertz]

Thermal Analysis [Watt]

Analysis Type

Electromagnetic Analysis: Harmonics Analysis

Thermal Analysis: Steady-state Analysis



Harmonic Analysis tab and Open Boundary tab are set as follows.

Tabs

Setting Item

Settings

Mesh

Mesh Size

20

Element Type

2nd-order Element

Adaptive Mesh

Off (to shorten the calculation time)

Frequency-Dependent Meshing

Reference Frequency: 2.45x109 [Hz]

Harmonic Analysis

Frequency

Minimum: 2.45x109 [Hz]

Maximum: 2.45x109 [Hz]

Input

10 [W] *



* The power of actual microwave ovens is much higher than this.

The temperature distribution at steady state is analyzed in this example. Therefore, if the actual power is applied, the resulting temperature will be too high.

The input power is low to prevent it.



Model

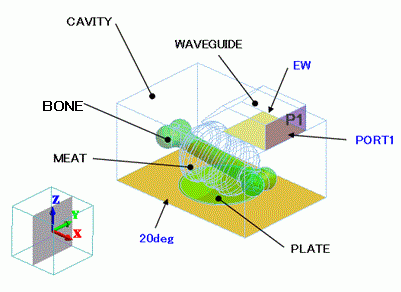

A waveguide is placed on the top of a cavity box. A port is set at the end of the waveguide.

The meat on the bone is placed on a plate. The temperature of the bottom face of CAVITY is 20 [deg].





Body Attributes and Materials

Body Number/Type

Body Attribute Name

Material Name

Mesh Size

0/Solid

CAVITY

000_Air(*)



5/Solid

WAVEGUIDE

000_Air(*)



6/Sheet

Imprinting body





13/Solid

PLATE

PLATE

8

75/Solid

BONE

BONE

8

96/Solid

MEAT

WATER



* Available from the material DB







Material Name

Tab

Properties

PLATE

Permittivity

Relative Permittivity: 7.0

tanδ: 0.0

Thermal Conductivity

1.5 [W/m/deg]

BONE

Permittivity

Relative Permittivity: 7.0

tanδ: 0.1

Thermal Conductivity

1.5 [W/m/deg]

WATER

Permittivity

Relative Permittivity: 76.7

tanδ: 0.16

Thermal Conductivity

1.5 [W/m/deg]

Boundary Conditions

Boundary Condition Name/Topology

Tab

Boundary Condition Type

Settings

PORT1/Face

Electric

Port

Reference Impedance:
Select [Use the characteristic impedance calculated from the port structure].

EW/Face

Electric

Electric Wall



20deg/Face

Electric

Electric Wall



Thermal

Temperature

20 [deg]

Outer Boundary Condition

Electric

Electric Wall



The default setting is [Magnetic Wall] for the electric boundary, and [Adiabatic] for the thermal boundary.



Results

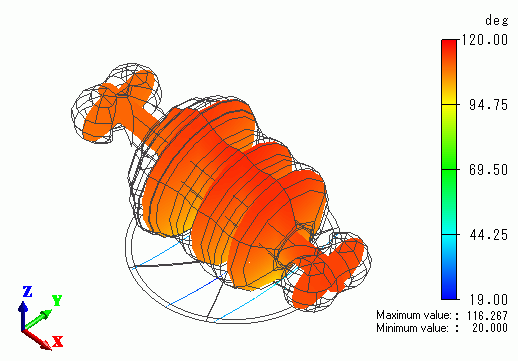

The model is well heated overall.
