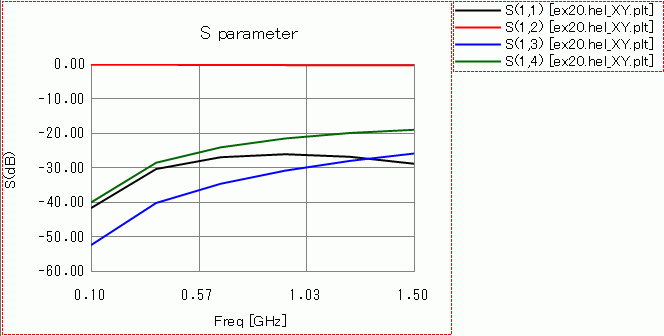

A balanced line formed on a dielectric substrate is characterized.
[How to Reduce the Calculation Time]
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Electromagnetic Analysis [Hertz] |
Analysis Type |
Harmonic Analysis |
The harmonic analysis is set up as follows.
Tab |
Setting Item |
Settings |
Mesh Tab |
Frequency-Dependent Meshing |
Reference Frequency: 1x109 [Hz] Select [The conductor bodies thicker than the skin depth constitute the boundary condition]. |
Harmonic analysis |
Sweep Type |
Select [Linear Step by Division Number] |
Sweep Setting |
Minimum: 0.15×109 [Hz] Maximum: 1.5x109 [Hz] Division number: 5 |
|
Sweep Setting |
Select discrete sweep |
|
Input |
1.0 [W] |

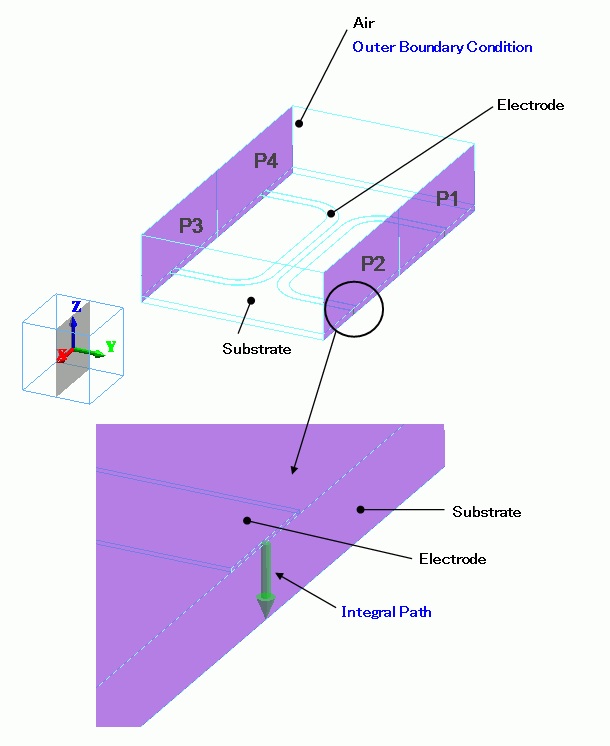

Two microstrip lines are placed in parallel. Port 1 and Port 2 are on the same face.
Create a face which includes ports, and set the "port" there.
This face doesn't need to have either the material name or the body attribute name, as the purpose of it is only to create the ports.
Electric wall surrounds the model. The boundaries of Port1 and Port2 are treated as electric wall too.
Body Number/Type |
Body Attribute Name |
Material Name |
0/Solid |
SUB |
006_Glass_epoxy * |
1/Solid |
Electrode |
008_Cu * |
6/Solid |
Electrode |
008_Cu * |
7/Solid |
AIR |
000_Air(*) |
8/SheetBody |
Imprinting body |
|
9/SheetBody |
Imprinting body |
|
10/SheetBody |
Imprinting body |
|
11/SheetBody |
Imprinting body |
|
* Available from the material DB
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
Port_001/Face Port_002/Face Port_003/Face Port_004/Face
|
Electric |
Port |
Reference Impedance: Number of Modes Number of Precalculated Modes: 5 Number of Modes Used in the Actual 3D Analysis: 1 Select Modes: None |
Outer Boundary Condition |
Electric |
Electric Wall |
Set on the [Open Boundary] tab of [Analysis Condition] |
