Number
Example Title
Simulation Image
Setup Condition and Function
1

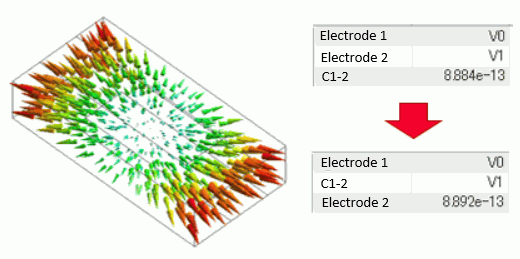

Capacitance Change by Linear Thermal Expansion
Electric Analysis: Static Analysis (Capacitance)
Electric Potential Specified
Open Boundary
(Absorbing Boundary)
Results Import
(Deformed Shape)
Stress Analysis: Static Analysis
Thermal Load Option
2

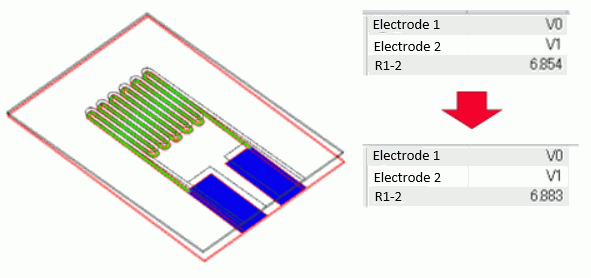

Resistance Change by Deformation
Electric Analysis: Static Analysis (Resistance)
Electric Potential Specified
Results Import
(Deformed shape)
Stress Analysis: Static Analysis
Fixed Displacement
Forced Displacement
