We will study how the different sizes of analysis domain affect the results.
The model is based on Example 8 of the acoustic analysis.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Acoustic Analysis [Mach] |
Analysis Type |
Harmonic Analysis |
Options |
N/A |
Tab |
Setting Item |
Settings |
Harmonic Analysis |
Sweep Values |
Minimum: 5 [kHz] Maximum: 5 [kHz] |
Open Boundary |
Type |
Absorbing Boundary |
Order of Absorbing Boundary |
2nd-order (Models 1 and 2) 1st-order (Model 3) |
We will observe how the speaker's sound travels in the air and how a model's form and size affect the results.
A portion is extracted from the spherical or box ambient air for a speaker's domain. Therefore, a body of speaker does not exist. The driving source is set at the pressure of 1 [Pa]. A open boundary condition is applied to the spherical air domain. For easy viewing of the inside of the model, the open boundary condition is hidden. The directivity domain consists of two sheet bodies.
Three models with different forms are analyzed. The models are shown at the top of this page.
Model 1. A speaker is placed in a sphere with a radius of one wavelength (60 cm). General mesh size is 1/6 of the wavelength.
Model 2. A speaker is placed in a sphere with a radius of half wavelength (30 cm). General mesh size is 1/6 of the wavelength.
Model 3. A speaker is placed in a box. (The distance from the speaker to the end of ambient air is 5 cm.) General mesh size is 1/12 of the wavelength.
Please note that the mesh size of 4 is set to the peripheral faces of the speaker in all three models. It is to calculate correctly the characteristics of the small form of speaker.
Models 1 and 2
Body Number/Type |
Body Attribute Name |
Material Name |
2/Solid |
Air |
000_Air(*) |
15/Solid |
Air |
000_Air(*) |
18/Solid |
Air |
000_Air(*) |
21/Sheet |
OUTSIDE |
000_Air(*) |
22/Sheet |
OUTSIDE |
000_Air(*) |
Model 3
Body Number/Type |
Body Attribute Name |
Material Name |
2/Solid |
Air |
000_Air(*) |
14/Solid |
Air |
000_Air(*) |
15/Solid |
Air |
000_Air(*) |
18/Sheet |
OUTSIDE |
000_Air(*) |
19/Sheet |
OUTSIDE |
000_Air(*) |
* Available from the material DB
Body Attribute Name |
OUTSIDE |
If the body is selected with [Use directivity calculation method], the body will be recognized as the domain for the directivity calculation. The material [000_Air] is specified for this body but not used for the calculation. The simulation is performed assuming that the body material set with open boundary conditions exists outside of the boundary.
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
F/Face |
Sound Wave |
Pressure |
1 [Pa] |
Open/Face |
Sound Wave |
Open Boundary |
|
The domains of the body attribute names of AIR and OUTSIDE for the three models are displayed on the graphs and contour diagrams to see the differences.
There is no difference between the three models for the OUTSIDE domain.
The contour diagram of the AIR domain hides half of the domain to show the inside. As you can see from the contour diagram and graph of the AIR domain, the three models give almost the same results. Only a different result is seen near the backside of Model 3.

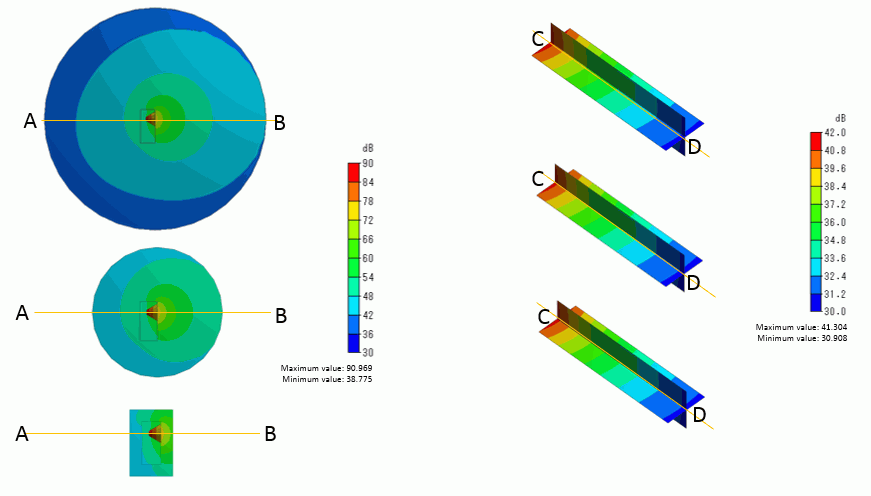

Sound pressure distribution in the AIR domain Sound pressure distribution in the OUTSIDE domain

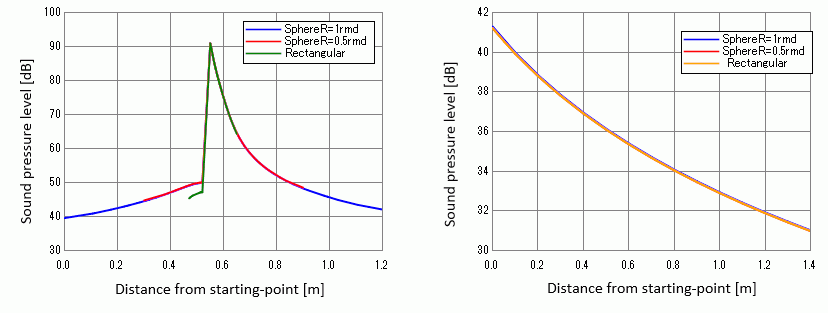

Sound pressure distribution in the AIR domain (across A and B) Sound pressure distribution in the OUTSIDE domain (across C and D)
In Model 3, the distance between the speaker and the open boundary is as short as 1/12 of the wavelength, but the radiation pattern does not show any changes. The mesh size, though, is reduced to about half of Models 1 and 2. It is because the result was shifted when analyzing Model 3 with the same mesh size as Models 1 and 2. Please perform an analysis paying attention to this point.
