Home / Examples / Thermal Analysis [Watt] / Example 3: Block Containing Heating Element (Steady-State Analysis)
A heating element is placed in the center of the block. The ambient temperature is constant.
The temperature distribution and the heat flux vectors are solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
Item |
Settings |
Solver |
Thermal Analysis [Watt] |
Analysis Type |
Steady-state Analysis |
Options |
N/A |
A cylindrical heating element (Nichrome) is placed in the center of a glass-epoxy block.
The heat source is set in the body attribute. The ambient temperature is set to 0[deg] in the external boundary condition.
Body Number/Type |
Body Attribute Name |
Material Name |
Mesh Size |
0/Solid |
VOL1 |
006_Glass_epoxy * |
|
1/Solid |
VOL2 |
109_Nichrome * |
2 |
* Available from the material DB
The heat source of VOL2 is set up as follows.
Body Attribute Name |
Tab |
Settings |
VOL2 |
Heat Source |
10 [W] |
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
Outer Boundary Condition |
Heat |
Temperature |
0 [deg] |
To set Outer Boundary Condition, go to the [Model] tab
and click [Outer Boundary Condition]
.

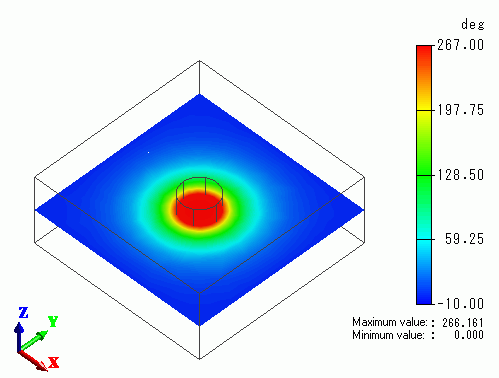

A cross section's temperature distribution is shown below.
The hottest point is the center of the heating element. The temperature is 266 [deg].

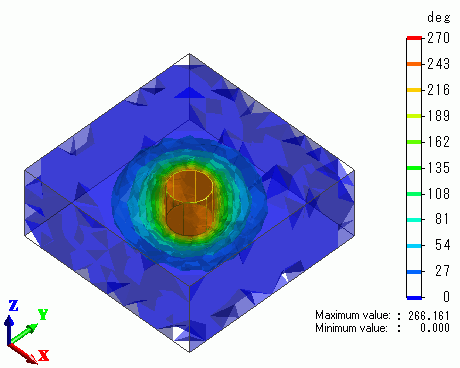

Shown below is the isosurface contour of the temperature distribution. [Shading] and [Translucency] are enabled.
The 3D temperature gradient is exhibited clearly around the heating element.
