Example 10: Natural Convection with Correction Coefficient Manually Calculated


General



Analysis Space

Item

Settings

Analysis Space

3D

Model Unit

mm

Analysis Conditions

Item

Settings

Solver

Thermal Analysis [Watt]

Analysis Type

Steady-state Analysis

Options

N/A

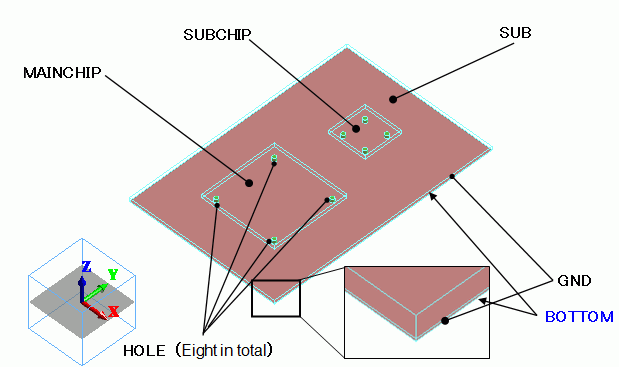

Model

Body Attributes and Materials

The finer mesh size is set to via holes (HOLE), where the heat flux is expected to change drastically.

Body Number/Type

Body Attribute Name

Material Name

Mesh Size

0/Solid

SUB

006_Glass_epoxy *



1/Solid

GND

008_Cu *



2/Solid

MAINCHIP

001_Alumina *



3/Solid

SUBCHIP

001_Alumina *



4/Solid

HOLE

008_Cu *

0.5

5/Solid

HOLE

008_Cu *

0.5

6/Solid

HOLE

008_Cu *

0.5

7/Solid

HOLE

008_Cu *

0.5

8/Solid

HOLE

008_Cu *

0.5

9/Solid

HOLE

008_Cu *

0.5

10/Solid

HOLE

008_Cu *

0.5

11/Solid

HOLE

008_Cu *

0.5

* Available from the material DB



The heat sources of MAINCHIP and SUBCHIP are set up as follows.

Body Attribute Name

Tab

Settings

MAINCHIP

Heat Source

0.2 [W]

SUBCHIP

Heat Source

0.1 [W]

Boundary Condition

It is assumed that the heat is released to the ambient only from the top and bottom faces of the model. The heat released from the side faces is ignored because the total area of the side faces is much smaller than that of the top and bottom faces.

Boundary Condition Name/Topology

Tab

Boundary Condition Type

Settings

Bottom/Face

Thermal

Heat Transfer/Convection

Natural Convection *1: 1.39 [W/m2/deg5/4]

Room Temperature: 25 [deg]

TOP/Face

Thermal

Heat Transfer: Convection

Natural Convection *2: 2.78 [W/m2/deg5/4]

Room Temperature: 25 [deg]

MAINCHIPUPPER/Face

Thermal

Heat Transfer: Convection

Natural Convection *3: 6.41 [W/m2/deg5/4]

Room Temperature: 25 [deg]

SUBCHIPUPPER/Face

Thermal

Heat Transfer: Convection

Natural Convection *4: 7.62 [W/m2/deg5/4]

Room Temperature: 25 [deg]



(*1) BOTTOM

2.51×C×(1/L)^(1/4) = 1.39 [W/m2/deg5/4]

where

C = 0.26

Size of the substrate : 0.06x0.04

L (Typical Length) = (0.06 x 0.04 x 2) / (0.06 + 0.04) = 0.048



(*2) TOP

2.51×C×(1/L)^(1/4) = 2.78 [W/m2/deg5/4]

where

C = 0.52

Size of the substrate : 0.06x0.04

L (Typical Length) = (0.06 x 0.04 x 2) / (0.06 + 0.04) = 0.048



(*3) MAINCHIPUPPER

2.51×C×(1/L)^(1/4) = 6.41 [W/m2/deg5/4]

where

C = 0.96

Size of the chip : 0.02x0.02

L (Typical Length) = (0.02 x 0.02 x 2) / (0.02 + 0.02) = 0.02



(*4) SUBCHIPUPPER

2.51×C×(1/L)^(1/4) = 7.62 [W/m2/deg5/4]

where

C = 0.96

Size of the chip : 0.01x0.01

L (Typical Length) = (0.01 x 0.01 x 2) / (0.01 + 0.01) = 0.01



Results

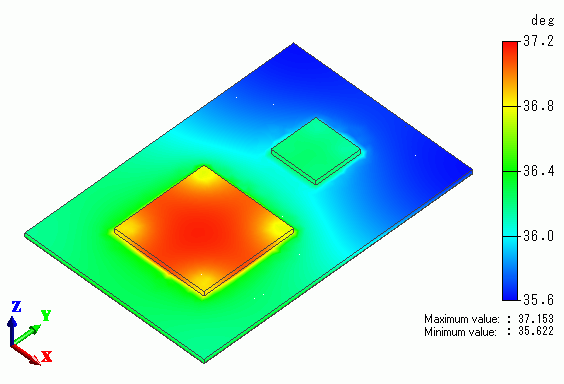

The temperature distribution is shown below.


Even though the absolute value of the temperature difference is about as low as 1.5 deg, the temperature of MAINCHIP is highest.

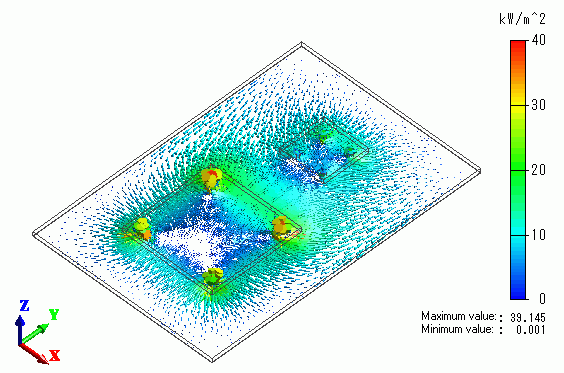

The vectors of the heat flux are shown below.

The heat is well transferred from each heat source through the via holes.
