Femtet Operation by Python

How to operate Femtet by Python is explained here.

Sample Script

  • Obtain sample script. (Self-extraction format)

    • This script is what was converted to Python script from a VBA macro file of Example 10 of the stress analysis.

    • The following files will be extracted.

      FemtetMacroSample.py (sample script itself)



  • General flows of a sample script
    • FemtetMain(): Main method

     Activate Femtet automatically (auto_execute_femtet method of Python Femtet Utility Package)

            ↓

Create an instance of CFemtet class (win32com.client.Dispatch method)

            ↓

     Create a new project (CFemtet.OpenNewProject method)

            ↓

     Set analysis condition (AnalysisSetup method)

            ↓

     Set body attribute (BodyAttributeSetup method)

            ↓

     Set material property (MaterialSetUp method)

            ↓

     Set boundary condition (SetBoundarySetUp method)

            ↓

     Create a model (MakeModel method)

            ↓

     Create meshes (CGaudi.Mesh method)

            ↓

     Run solver (CFemtet.Solve method)

            ↓

     Extract results (SamplingResult method)



  • How to run the sample script
    • The process of displaying the result values is described as a standard output in the sample script. Run the script on the command prompt.



    • Run the following command on the command prompt.

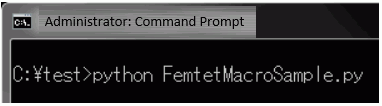

          python FemtetMacroSample.py



    • Femtet is automatically activated. After the analysis is performed, the analysis results will be displayed on the command prompt as follows.





  • Note
    • By pressing Ctrl and Break keys together, script can be suspended.



How to Use Python Femtet Utility Package

  • Python Femtet Utility Package allow you to activate Femtet and other applications by Python script.
  • Describe an import of the Python Femtet utility package in the script to create. (Refer to the sample script)
    from femtetutils import util, const



  • Use a method.
    • Example: Activate Femtet.

util.auto_execute_femtet()



How to Create an Instance of Femtet Interface Class

  • The names of Femtet interface class are defined in the Python Femtet utility package. It is useful for creating an instance.
    • The defined Femtet interface class is as follows.

          CFemtet, CGaudiPoint, CGaudiVector, CGaudiPlane, CComplex, CSYZMatrix



    • Describe an import of the Python Femtet utility package in the script to create. (Refer to the sample script.)

          from femtetutils import util, const



    • Create an instance of Femtet interface class for Python's variable. (Refer to the sample script.)

          Femtet = Dispatch(const.CFemtet) # In the case of instantiating the CFemtet class



How to Use Constants of Femtet Macro

  • To use Femtet macro constants (such as SOLVER_T, SPACE_T, DYNAMIC_T) with Python, the following definition is necessary.



    • Describe an import of a package of "instance creation/reference to macro constant" in the script to create. (Refer to the sample script.)

          from win32com.client import Dispatch, constants



    • To use a constant in the script, describe constants.constant name as shown in red below.

          Als.Hertz.Dynamic = constants.HARMONIC_C



Python-specific Methods and Properties

  • About Python-specific methods and properties



- The standard methods and properties of Femtet are created so that Femtet can be operated by VB and VBA.

    Some of the methods and properties do not work with Python.



    - For the methods and properties which don't work with Python, Python-specific version is available.

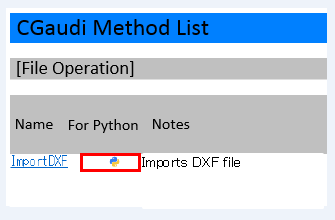

      The methods and properties only for Python are indicted by in the method list and property list of Femtet Help.







  • The difference from the standard methods and properties



- For easy identification, [_py] is attached to the end of the method name and property name.



      (Example) Standard method: CGaudi.CreateWire1 ⇒ Python-specific method: CGaudi.CreateWire1_py





- If multiple return values exist in a standard method, they are combined to one return value in the double type.



(Example) in the case of Standard method: CGaudi.FindBodyAll(Points() As CGaudiPoint, BodyList() As CGaudiBody) As Boolean,

         the return values exist in BodyList() and FindBodyAll methods. (Two types of return values)



                 ↓



         In the case of Python-specific method: CGaudi.FindBodyAll_py(CGaudiPoint[] Points), multiple return values are FindBodyAll method



          ret = FindBodyAll_py(Points)



          where



ret[0] ⇒ returns True or False.

Ret[1][0 to The number of found bodies - 1] ⇒ returns dynamic array of the found bodies (CGaudiBody).





      • If multiple return values exist, multiple variables can be specified for each type in the left side.

(Example) For ret, bodies = FindBodyAll_py(Points),

     the result (True/False) can be set to ret, and the dynamic array of bodies to bodies.



Caution for Shifting from VBA Macros

  • Be sure to describe ( ) in the case of macro method without parameter. For Python, a method without ( ) is not an error, but the method is not executed.

    (Example) CFemtet.Redraw(), CGaudiBody.Fit(), etc.



  • If Python-specific method (xxx_py) are available, be sure to use them. A method without _py may result in an error, or unintended behavior without an error.



File Path

  •   Femtet macro methods support only "¥" as a file path delimiter.
    The slash of "\" is not supported. To convert it, use the following code.

    path = path.replace('/', '¥¥')
