Diffusion Analysis Setting

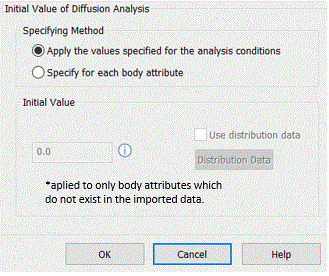

The initial value of the diffusion quantity is set for the transient analysis.

Setting Item	Notes
Specifying Method	Apply the values specified for the analysis conditions Applies the initial value set in the [Diffusion Analysis Setting]. Specify for each body attribute Applies the initial value for each body attribute.
Initial Value	Enterable if Specify for each body attribute is selected. Sets the initial value for each body attribute.
Use Distribution Data	Enterable if Specify for each body attribute is selected. If Use distribution data is selected, distributed temperature is set as an initial temperature for each body. Click the Distribution Data button to open the dialog box. See [How to Set Distributed Boundary Condition and Body Attribute] for the detail.
