Example 18: Electric Resistance Set on Boundary Face
General
-
This model consists of two bodies. Their interface has electric resistance. The electric wall is applied to the two bodies.
-
The distribution of the electric potentials and the current density are solved.
-
Unless specified in the list below, the default conditions will be applied.
-
Obtain this session's project file. (Right-click and choose 'Save link as')
-
Results will vary depending on Femtet version and the PC environment.
Analysis Space
|
Item |
Settings |
|
Analysis Space |
3D |
|
Model Unit |
mm |
Analysis Conditions
|
Item |
Settings |
|
Solver |
Electric Analysis [Coulomb] |
|
Analysis Type |
Static Analysis (Resistance) |
|
Options |
None |
Model

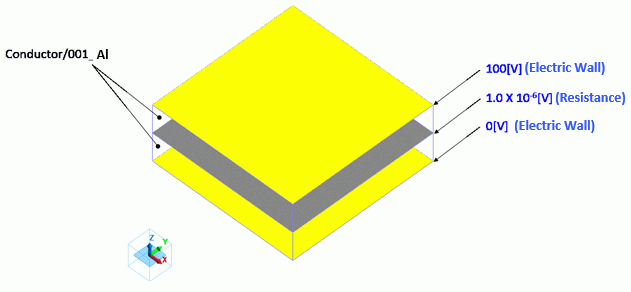

The model consists of two rectangular solid bodies made of aluminum. They share a boundary face.
The electric wall boundary condition is set on the bottom face and the top face. The electric resistance is set as a boundary condition on the boundary face of the two bodies.
Body Attributes and Materials
|
Body Number/Type |
Body Attribute Name |
Material Name |
|
0/Solid |
conductor |
001_Al * |
|
1/Solid |
conductor |
001_Al * |
* Available from the material DB
Boundary Condition
|
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Setting |
|
100volt/Face |
Electric |
Electric Wall |
100 [V] |
|
0volt/Face |
Electric |
Electric Wall |
0 [V] |
|
Electric Resistance/Face |
Electric |
Electric Resistance |
1.0 X 10-6 [ohm] |
Results

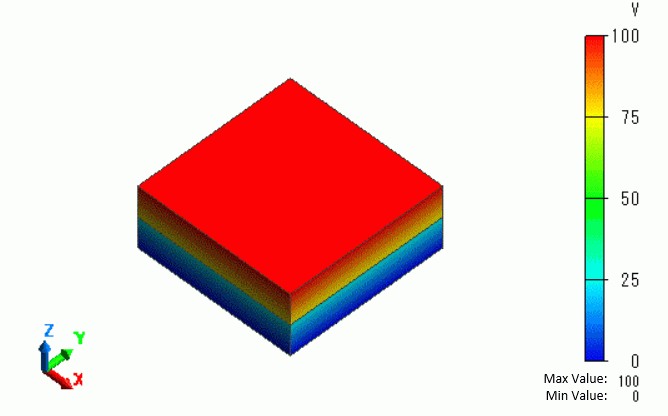

The electric potential distribution is shown below.
The electric potential changes discontinuously on the face, on which the electric resistance is set.

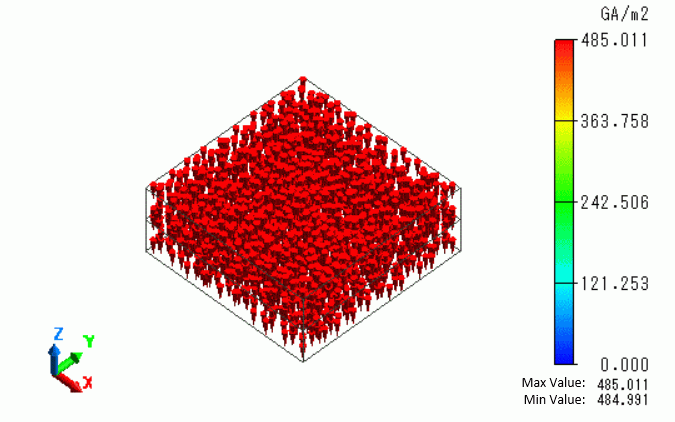

The current density vectors are shown below.
The integral of the heat flux is calculated by Integration on Results Window. Calculation result of the current density on the top face of the body is shown below.
Theoretical value is calculated as shown below. Analysis results almost match with the theoretical value.
Electric resistance of the body [ohm] = Thickness in current density direction [m] / (cross sectional area [mm^2] x conductivity [1/ohm/m] ),
Body dimensions: 10 [mm] x 10 [mm] x 2 [mm], Electric Conductivity of Aluminum: 3.767×10^7 [1/ohm/m]
With these items above, calculation is done as below.
Total electric resistance = electric resistance of upper body + electric resistance at boundary + electric resistance of lower body
= 2 x 10-3 / ( 3.767 x 107 x 100 x 10-6 ) + 1.0 x 10-6 + 2 x 10-3 / ( 3.767 x 107 x 100 x 10-6 )
=2.0619 x 10-6 [ohm]
Current [A] = Electric Potential [V] / Total Electric Resistance [ohm]
= (100 - 0 ) / ( 2.0619 x 10-6 )
= 4.85 x 107 [A]
