Example 3: Cantilever with Forced Displacement

General

• The free end of a cantilever is displaced forcibly.


• The distributions of displacement and stress are solved.


• Unless specified in the list below, the default conditions will be applied.


• Obtain this session's project file. (Right-click and choose 'Save link as')




• Results will vary depending on Femtet version and the PC environment.



Analysis Space

Item	Settings
Analysis Space	3D
Model Unit	m



Analysis Conditions



Item	Settings
Solver	Stress Analysis [Galileo]
Analysis Type	Static Analysis
Options	N/A

 Model

The bar is a rectangular solid body. The material is polycarbonate.

The boundary condition of fixed displacement is set to the fixed face of the bar and
the boundary condition of forced displacement in the negative Z direction is set to the edge topology of the other face.



Body Attributes and Materials

Body Number/Type	Body Attribute Name	Material Name
0/Solid	BEAM	002_Polycarbonate(PC) *

* Available from the material DB

Boundary Conditions

Boundary Condition Name/Topology	Tab	Boundary Condition Type	Settings
FIX/Face	Mechanical	Displacement	Select all X/Y/Z components. UX=0, UY=0, UZ=0
DISP/Edge	Mechanical	Displacement	Select the Z-direction component. Uz=-0.5x10-3 [m]

Results

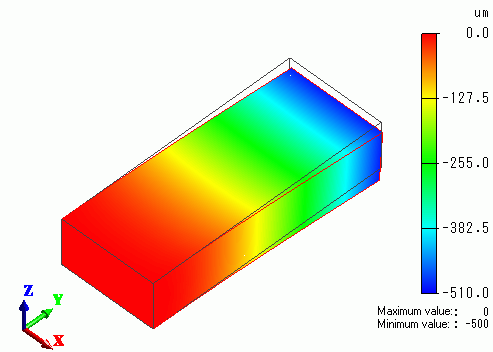

The contour diagram shows the magnitude of displacement.

The displacement in the -Z direction is greater towards the tip of the bar. At the tip of the bar, the -Z displacement of approximately 500 um occurs.



The vectors of the stress are shown below.

The upper part of the fixed end is getting the tensile stress, whereas the lower part is getting the compressive stress.



The external force and reactive force are listed in the table below.





The reactive force at FIX is 445 [N] in +Z direction.

The external force at DISP is 445 [N] in -Z direction.
