Example 5: Ring under Forced Normal Displacement

General

• A ring is deformed due to the forced normal displacement.


• The distributions of displacement and stress are solved.


• Unless specified in the list below, the default conditions will be applied.


• Obtain this session's project file. (Right-click and choose 'Save link as')




• Results will vary depending on Femtet version and the PC environment.



Analysis Space

Item	Settings
Analysis Space	3D
Model Unit	mm



Analysis Conditions

This is a static analysis.

Item	Settings
Solver	Stress analysis [Galileo]
Analysis Type	Static Analysis
Options	N/A

 Model

Two cylindrical solid bodies are created. The smaller cylinder is subtracted from the larger cylinder by boolean. As a result, a ring is created.

The inner face of the ring is set with the simple contact boundary condition.



Body Attributes and Materials

Body Number/Type	Body Attribute Name	Material Name
0/Solid	RING	001_Al *

* Available from the material DB

Boundary Conditions

The normal displacement is set as follows:

Boundary Condition Name/Topology	Tab	Boundary Condition Type	Settings
DISP/Face	Mechanical	Normal Displacement	0.5X10-3 [m]

Results

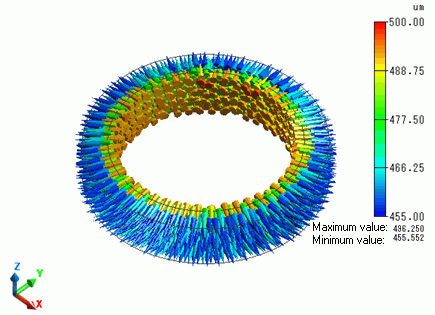

The vectors of the displacement are shown below.

The inner side of the ring is displaced by 0.5 [mm] according to the boundary condition. The outer side is displaced less.

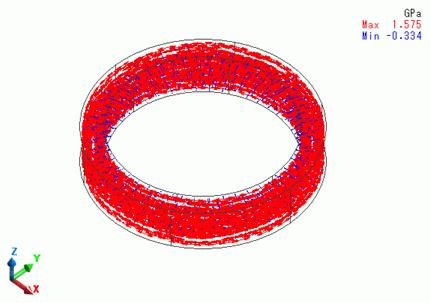

The vectors of the stress are shown below.

The tensile stress is exhibited in the circumferential direction, while the compressive stress is exhibited in the radial direction.
