Example 18: Material with Anisotropic Elasticity

General

• Rutile has the anisotropic elasticity. The deformation under uniform pressure is solved.


• The deformation, the displacement distribution, and the stress distribution are solved.


• Unless specified in the list below, the default conditions will be applied.


• Obtain this session's project file. (Right-click and choose 'Save link as')




• Results will vary depending on Femtet version and the PC environment.



Analysis Space

Item	Settings
Analysis Space	3D
Model Unit	mm

Analysis Conditions

Item	Settings
Solver	Stress Analysis [Galileo]
Analysis Type	Static Analysis
Options	N/A

Model

A cubic solid body is created. The material is rutile which has the anisotropic elasticity.

The anisotropic axis is oriented to (1, 1, 1), which is set on the direction tab of the body attribute.

The compressive pressure is set by the outer boundary condition.

Body Attributes and Materials

Body Number/Type	Body Attribute Name	Material Name
0/Solid	CUBIC	201_Rutile *

* Available from the material DB



Body Attribute Name	Direction
CUBIC	Vector Specified: Vector: X=1.0, Y=1.0, Z=1.0

The matrix indicates that the 3-3 direction has the highest elasticity. Therefore, it is set to be (X, Y, Z)=(1, 1, 1).

Boundary Conditions

Boundary Condition Name/Topology	Tab	Boundary Condition Type	Settings
Outer Boundary Condition	Mechanical	Pressure	1X10[6 [Pa]



Results

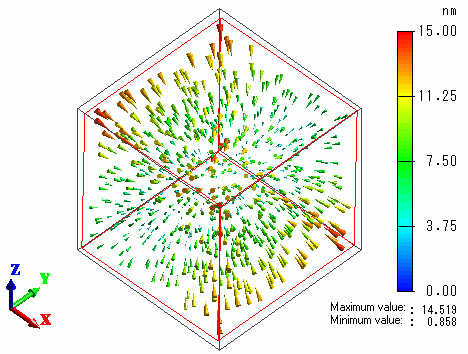

The vectors of displacement are shown below.

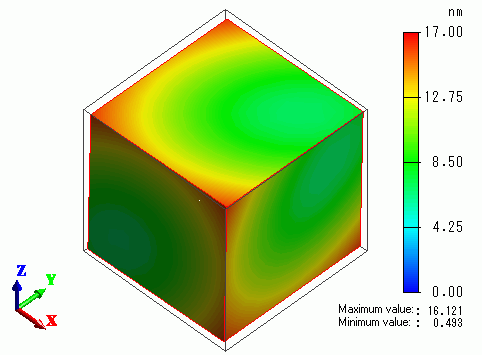

The displacement is shown below. The contour indicates the magnitude of displacement.

(X, Y, Z)=(1, 1, 1) exhibits the lowest compressive displacement.



The vectors of internal stress are shown below.

The pressure is applied uniformly, hence the internal stress is -1 [MPa] uniformly.
