Example 9: Inductance of Loop Coil



• The inductance of a loop coil is solved.


• The vectors of the magnetic field and the magnetic flux density are also solved.


• Unless specified in the list below, the default conditions will be applied.


• Obtain this session's project file. (Right-click and choose 'Save link as')




• Results will vary depending on Femtet version and the PC environment.



Analysis Space

Item	Settings
Analysis Space	3D
Model Unit	mm



Analysis Conditions

Item	Settings
Solver	Magnetic Analysis [Gauss]
Analysis Type	Static Analysis
Options	N/A

Model

A body of loop coil (coil) is defined.

Body Attributes and Materials

Body Number/Type	Body Attribute Name	Material Name
0/Solid	Coil	008_Cu *

* Available from the material DB



Body attribute is set up as follows to apply current to the loop coil.

Body Attribute Name	Tab	Settings
Coil	Current	Waveform: Constant Current: 1 [A] Turns: 1 [Turns] Direction: Loop Coil/Magnetic Field Direction: Magnetic Field Vector: X=0, Y=0, Z=1

Boundary Conditions

No setting.

Results

To see the results of inductance calculation, go to the [Results] tab





 and click [Show Numerical Summary Table] .







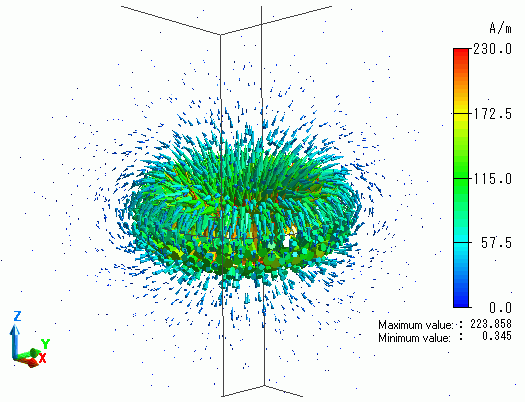

The vectors of the magnetic field are shown below.

The magnetic field inside coil is directing the negative Z direction.



The vectors of the current density are shown below.

The current is flowing as set for the coil.
