Example 19: Inductance of Nonlinear Material (B-H Curve)
General
-
Inductance of a core of nonlinear material (permeability is defined with B-H curve) is solved.
-
The vectors of the magnetic field and the magnetic flux density are solved.
-
Unless specified in the list below, the default conditions will be applied.
-
Obtain this session's project file. (Right-click and choose 'Save link as')
-
Results will vary depending on Femtet version and the PC environment.
Analysis Space
|
Item |
Settings |
|
Analysis Space |
3D |
|
Model Unit |
mm |
Analysis Conditions
Depending on the calculation type of inductance, different inductance value will be acquired.
See [Calculation Type of Inductance] for details.
|
Item |
Settings |
|
Solver |
Magnetic Analysis [Gauss] |
|
Analysis Type |
Static Analysis |
|
Options |
Calculation type of inductance: Apparent Inductance |
Model
A loop coil (coil) and a magnetic core (core) with gap are placed.
As the magnetic field concentrates in the gap of the magnetic core, small mesh size is applied (0.2mm).
Body Attributes and Materials
|
Body Number/Type |
Body Attribute Name |
Material Name |
|
9/Solid |
Coil |
008_Cu * |
|
8/Solid |
Core |
Core |
* Available from the material DB
Material property of the core is defined with B-H curve table.
-
If the magnetization characteristic is defined by B-H curve or M-H curve, calculation is nonlinear. Nonlinear calculation may not converge.
In such case, refer to "If the Nonlinear Calculation (B-H Curve) Does Not Converge "
|
Material Name |
Tab |
Settings |
||||||||||||||||||||||||
|
Core |
Permeability |
Magnetization Characteristic Type: Select [B-H curve]
B-H Curve Table
|
Press the Graph button. The following graph will show up.
Body attribute is set up as follows to apply current to the loop coil.
|
Body Attribute Name |
Tab |
Settings |
|
Coil |
Current |
Waveform: Constant Current: 2 [A] Turns: 100 [Turns] Direction: Loop Coil/Magnetic Field Direction Magnetic Field Vector: X=0, Y=0, Z=1 |
Boundary Conditions
No setting.
Results
To see the results of inductance calculation, go to the [Results] tab
and click [Show Numerical Summary Table]
.

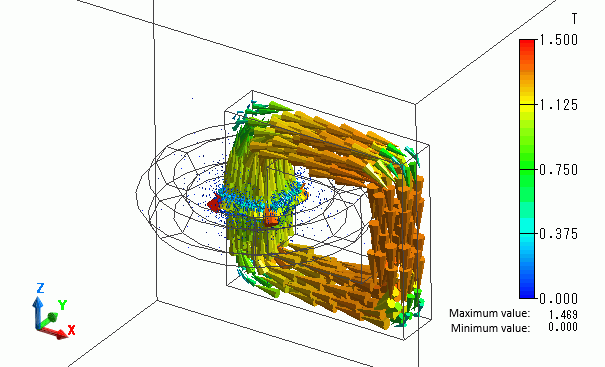

The vectors of the magnetic flux density are shown below.

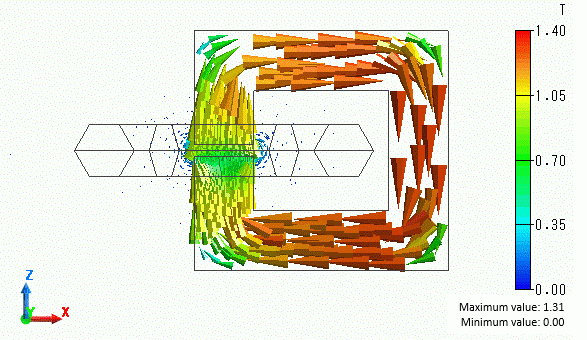

The section at XZ plane.
