Example 18: Multilayer Capacitor
General
-
A multilayer capacitor placed on a substrate is analyzed.
-
Microstrip lines connect the capacitor's electrodes and the ports on the substrate.
-
S-parameters and the electromagnetic field are solved.
-
Obtain this session's project file. (Right-click and choose 'Save link as')
-
Results will vary depending on Femtet version and the PC environment.
Analysis Space
|
Item |
Settings |
|
Analysis Space |
3D |
|
Model Unit |
mm |
Analysis Conditions
|
Item |
Settings |
|
Solver |
Electromagnetic Analysis [Hertz] |
|
Analysis Type |
Harmonic Analysis |
Harmonic Analysis tab and Open Boundary tab are set as follows.
|
Tab |
Setting Item |
Settings |
|
Mesh Tab |
Element Type |
2nd-order Element |
|
Adaptive Meshing |
Select [Apply adaptive meshing]. |
|
|
Frequency-Dependent Meshing |
Reference Frequency: 1x109 [Hz] Select [The conductor bodies thicker than the skin depth constitute the boundary condition]. |
|
|
Harmonic analysis |
Sweep Type |
Select [Log Step by Division Number] |
|
Sweep Setting |
Minimum: 1x107 [Hz] Maximum: 5x109 [Hz] Division: 100 |
|
|
Sweep Setting |
Select [Discrete Sweep] * |
|
|
Input |
1.0 [W] |
|
|
Open Boundary |
Type |
Absorbing Boundary |
|
Order of Absorbing Boundary |
1st-order |
*Fast sweep is deselected as the frequency is low.
Model
A multilayer capacitor is placed on a substrate. Microstrip lines connect the capacitor's electrodes and the ports on the substrate.
Body Attributes and Materials
|
Body Number/Type |
Body Attribute Name |
Material Name |
|
0/Solid |
SUBSTRATE |
006_Glass_epoxy * |
|
1/Solid |
MLCC |
CERAMICS |
|
2/Solid |
AIR |
000_Air(*) |
|
3-8/Sheet |
ELECTRODE |
003_Ag * |
* Available from the material DB
|
Body Attribute Name |
Tab |
Properties |
|
ELECTRODE |
Thickness/Width |
Thickness of Sheet Body: 2.0×10-2 * |
* The unit is [mm] as specified in the analysis condition.
|
Material Name |
Tab |
Properties |
|
CERAMICS |
Permittivity |
Relative Permittivity: 90 Dielectric Tangent: 2.0×10-4 |
Boundary Conditions
|
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
|
AUTO_PORT_1/Face |
Electric |
Port |
|
|
AUTO_PORT_2/Face |
Electric |
Port |
|
|
Outer Boundary Condition |
Electric |
Electric Wall |
|
Results
The current density vectors are shown below.

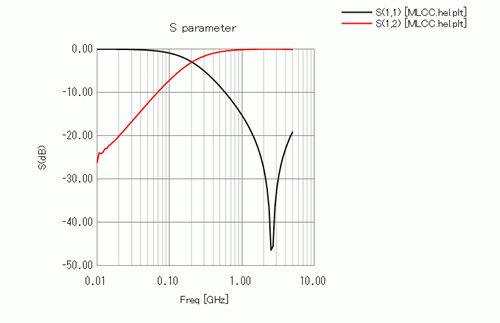

The frequency response of S-parameters is as follows. There is a resonance around 3 [GHz].
