Ellipsoid

Create an ellipsoid.

Procedure

  1.  On the [Model] tab, go to and click ▼ at the bottom of [Solid Body
    ]     .Click [Ellipsoid] on the submenu.





  1. Click and set the center on the modeling window.

    (Alternatively enter the coordinates in the parameter input dialog box, and click .)



  2. Click and set the radius 1 in the positive direction of subaxis of the drawing plane.

    (Alternatively enter the radius 1 in the parameter input dialog box, and click .)











  1. Click and set the radius 2 in the positive direction of the 2nd subaxis of the drawing plane.

    (Alternatively enter the radius 2 in the parameter input dialog box, and click .)

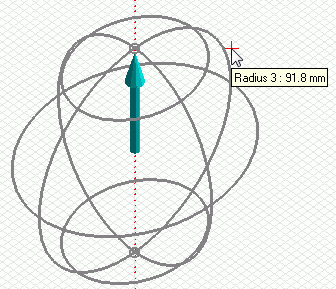

  1. Click and set the radius 3 in the positive direction of the main axis of the drawing plane.

    (Alternatively enter the radius 3 in the parameter input dialog box, and click .)

  1. Right click to exit.
