Move Face Topologies

Before

After

1. On the [Model] tab, go to



   and click Select Face on the drop-down list at .


2. On the [Model] tab, go to

   ,

   and click ▼ at the side of [Move/Rotate] . Select [Move] on the submenu.

   (Alternatively, right click the mouse. On the appearing menu, select [Move/Rotate]-[Move])

3. Select the face topologies to move.


4. Click in the parameter input dialog box.


5. Set the move vector.

   Apply either instant modeling mode operation or the following method.

   In the parameter input dialog box, enter the move vector and click .

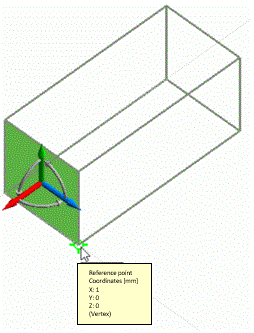

   (Alternatively, click and set the reference point on the modeling window

   and the move vector on the modeling window.)

6. Right click to exit.
