Move Vertex Topologies

Before



After




Move the selected vertex topologies.



  • This command is applicable to the vertices on the flat sheet bodies without points or edges imprinted.

Procedure

  1. On the [Model] tab, go to



    and click [Select Vertex] on the drop-down list at .




  1. On the [Model] tab, go to

    ,

    and click ▼ at the side of [Move/Rotate] . Select [Move] on the submenu.

    (Alternatively, right click the mouse. On the appearing menu,     select [Move/Rotate]-[Move])

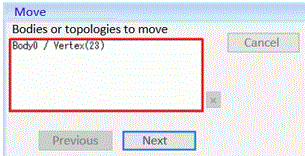

  1. Select the vertex topologies to move.


  1. Click in the parameter input dialog box.




  1. Set the move vector.

    In the parameter input dialog box    , enter the move vector and click .

    (Alternatively, click and set the     reference point

    and the move vector on the modeling window.)
