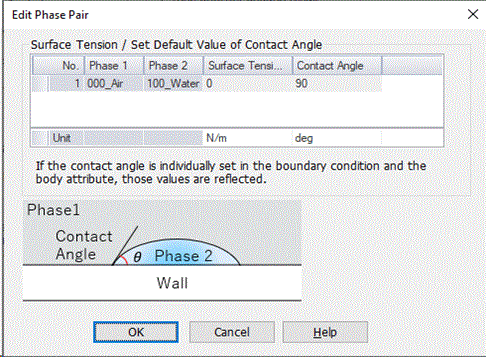

Phase Pair Setting

Setting Item

Notes

Surface Tension Setting

Sets the coefficient of surface tension generated on the boundary between phase 1 and phase 2.

Setting can be enabled only when the dialog box is opened from the analysis condition.

Setting cannot be enabled when the dialog box is opened from the boundary condition or the body attribute.

Contact Angle Setting

Sets contact angles of solid surfaces

Sets the default values when the dialog box is opened from the analysis condition.

When the dialog box is opened from the boundary condition or the body attribute, if the contact angle is individually set therein, those values are prioritized.
