Incident Wave (Plane Wave) Tab

The incident wave (plane wave) is set on this tab for the harmonic electromagnetic analysis.

The tab becomes active when [Incident wave (plane wave)] is selected in Options for electromagnetic analysis dialog box.

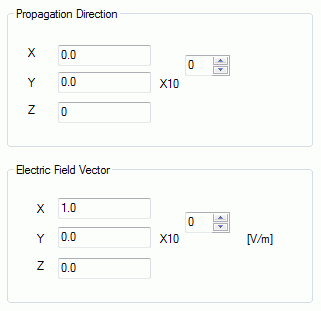

Setting Item

Notes

Propagation Direction

Sets the vector indicating the propagation direction.

Electric Field Vector

Sets the vector indicating the electric field. This vector should be on the plane perpendicular to the propagation direction.
