| General | Based on the Application example #71, the acoustic analysis is performed. Stress transient analysis and acoustic transient analysis are coupled. The sound pressure distribution in the air over time is calculated. |
|---|---|

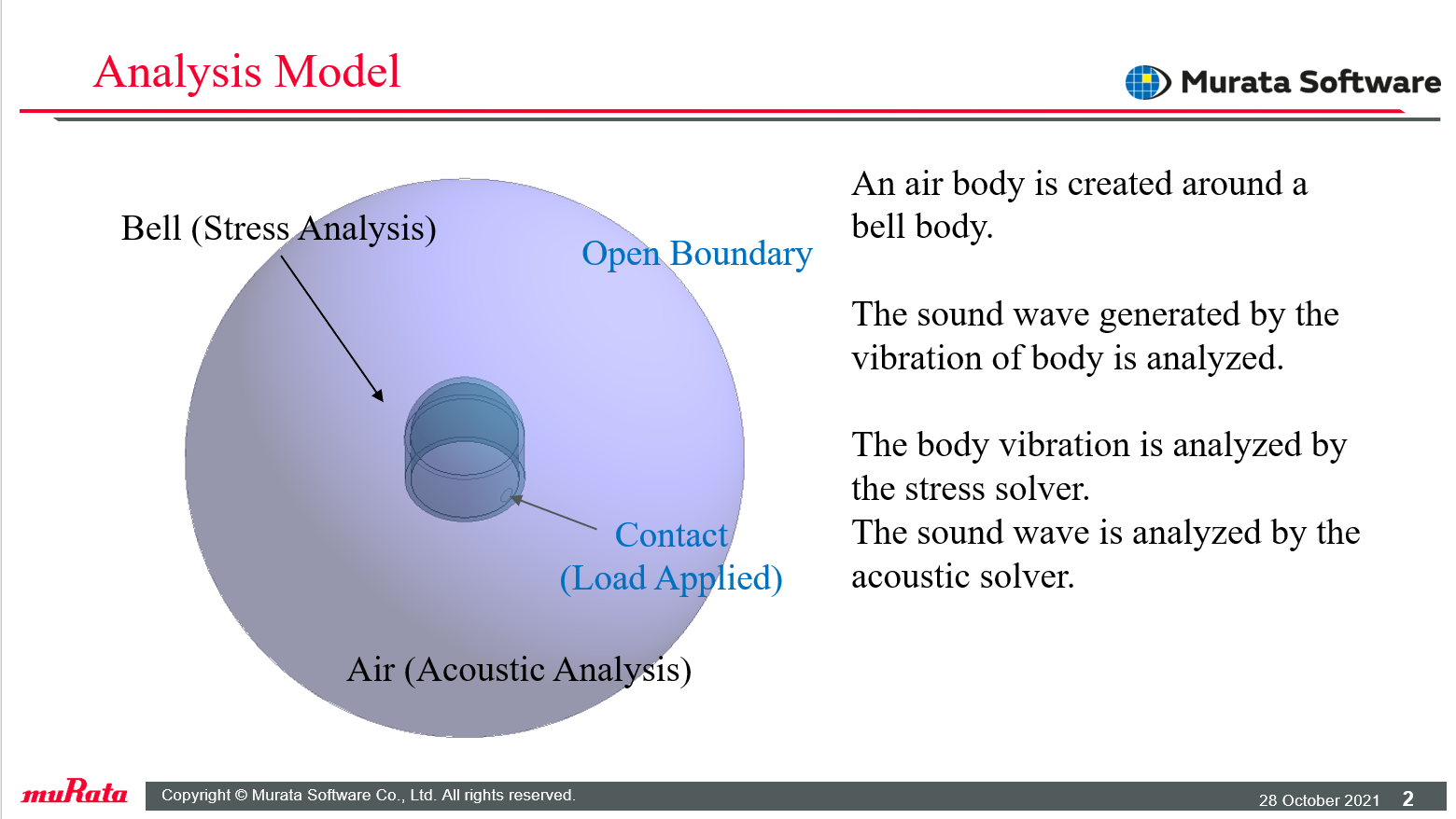

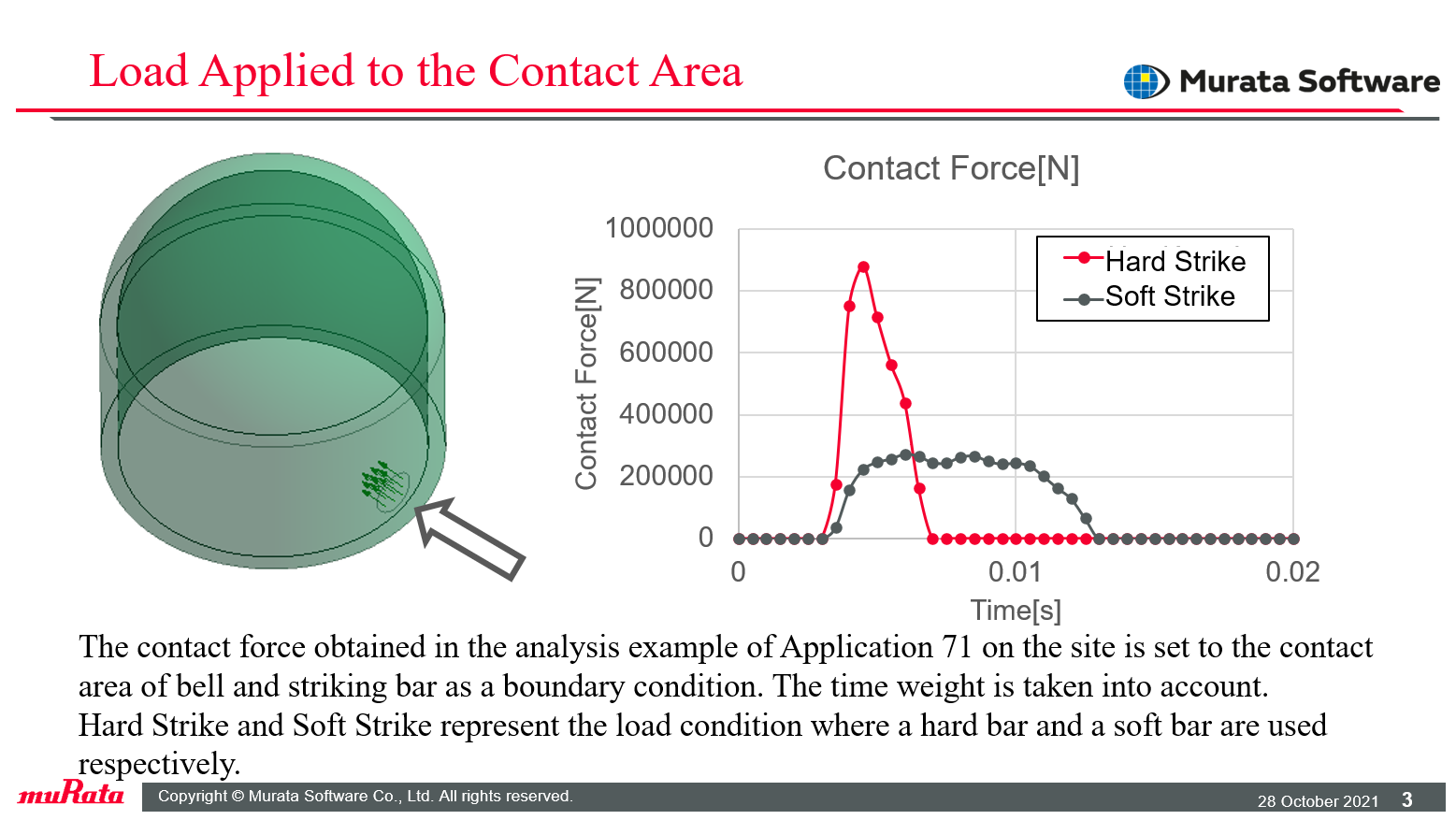

| Analysis Model | For boundary condition, the force applied by the striking bar is set as a changing load over time. The vibration of bell is analyzed by the stress solver, and the sound pressure in the air is analyzed by the acoustic solver. |

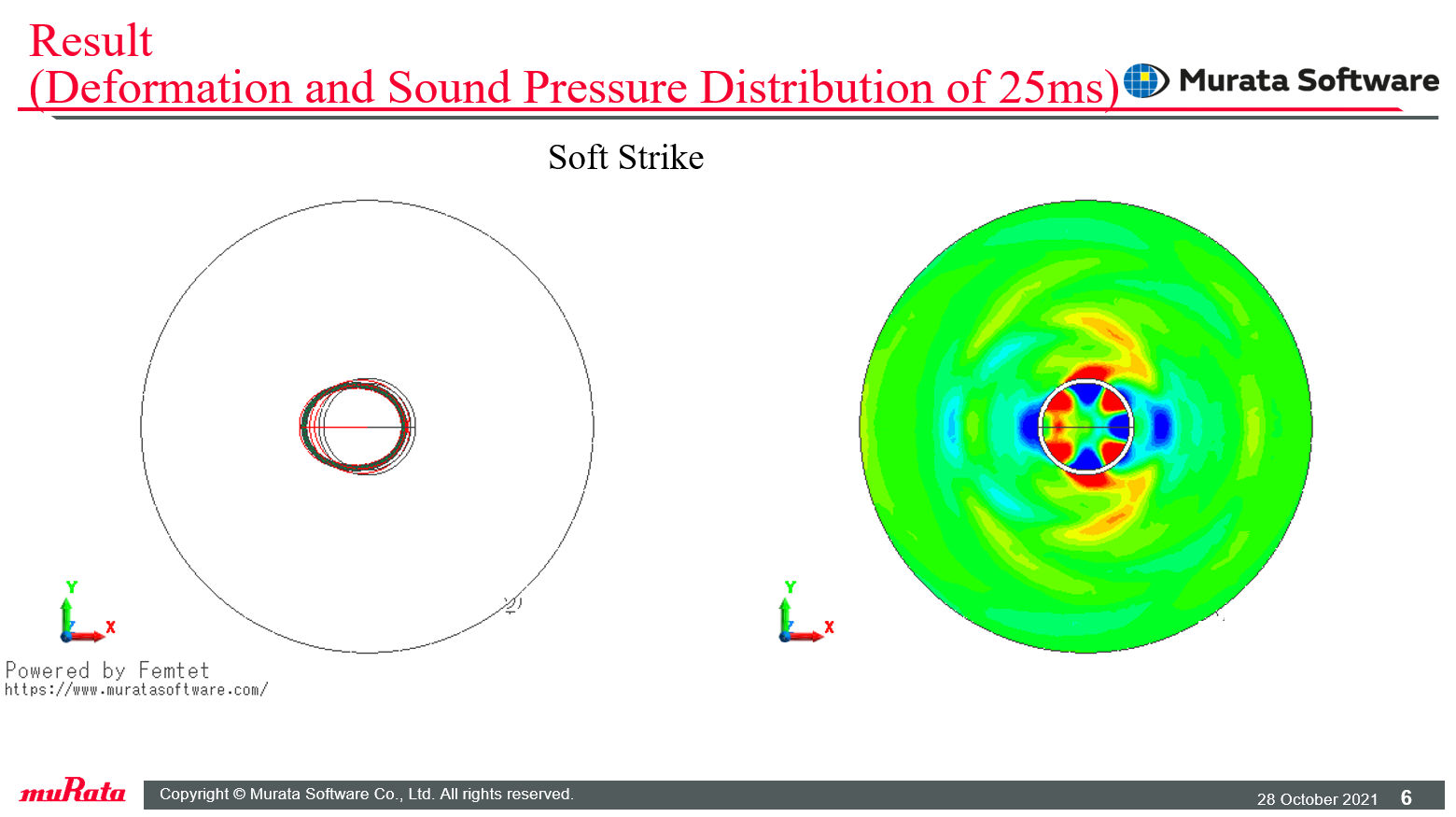

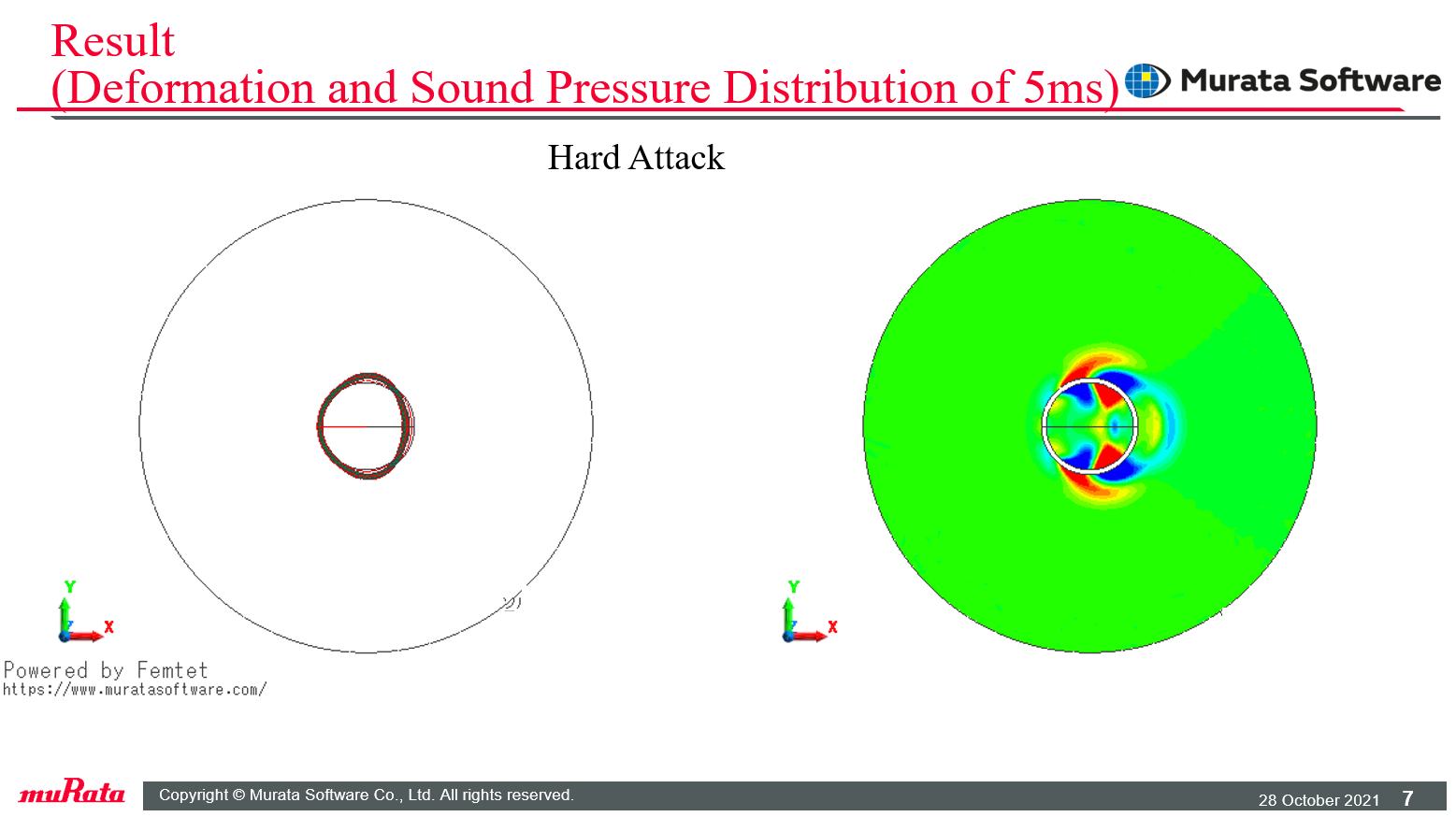

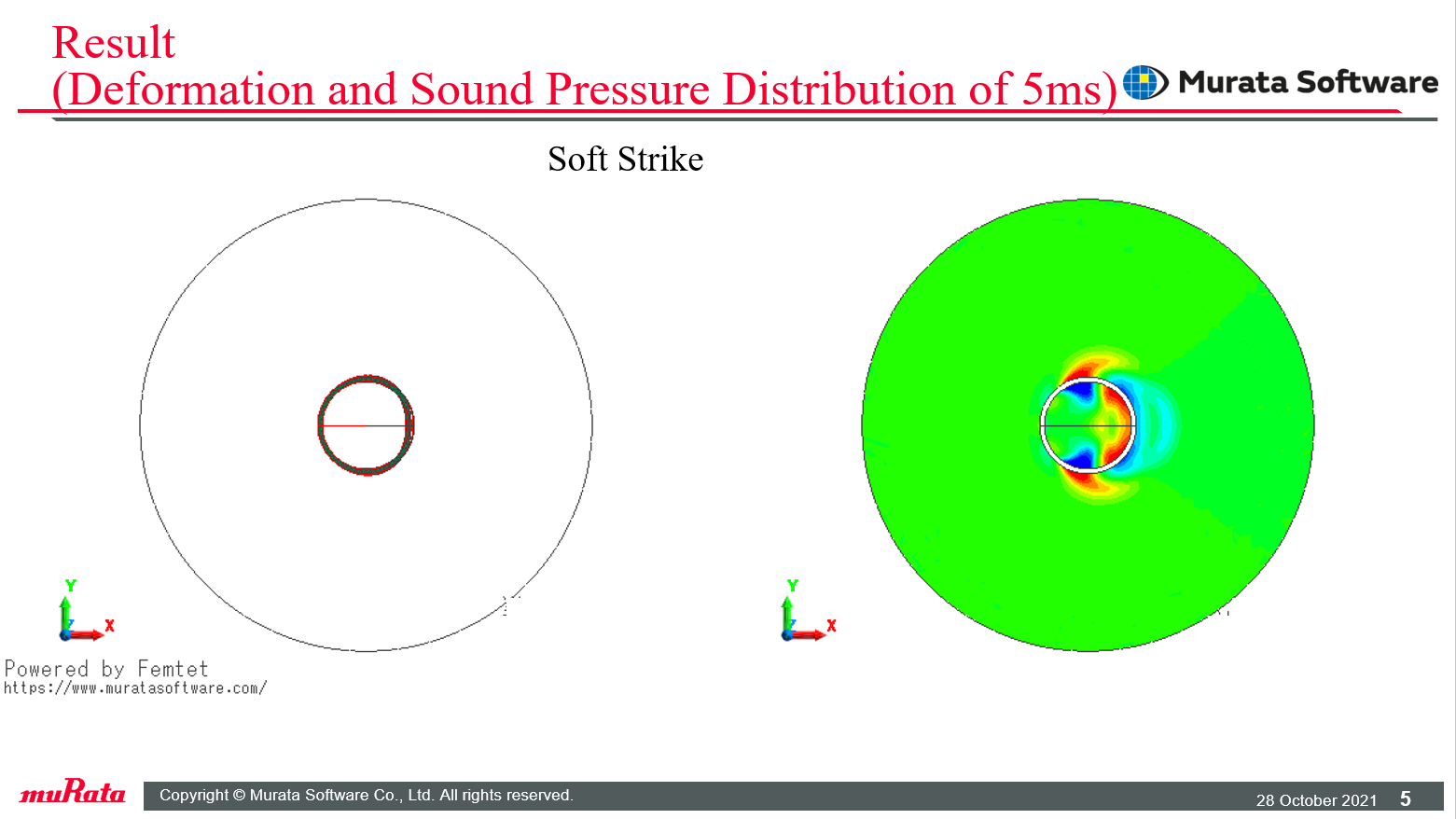

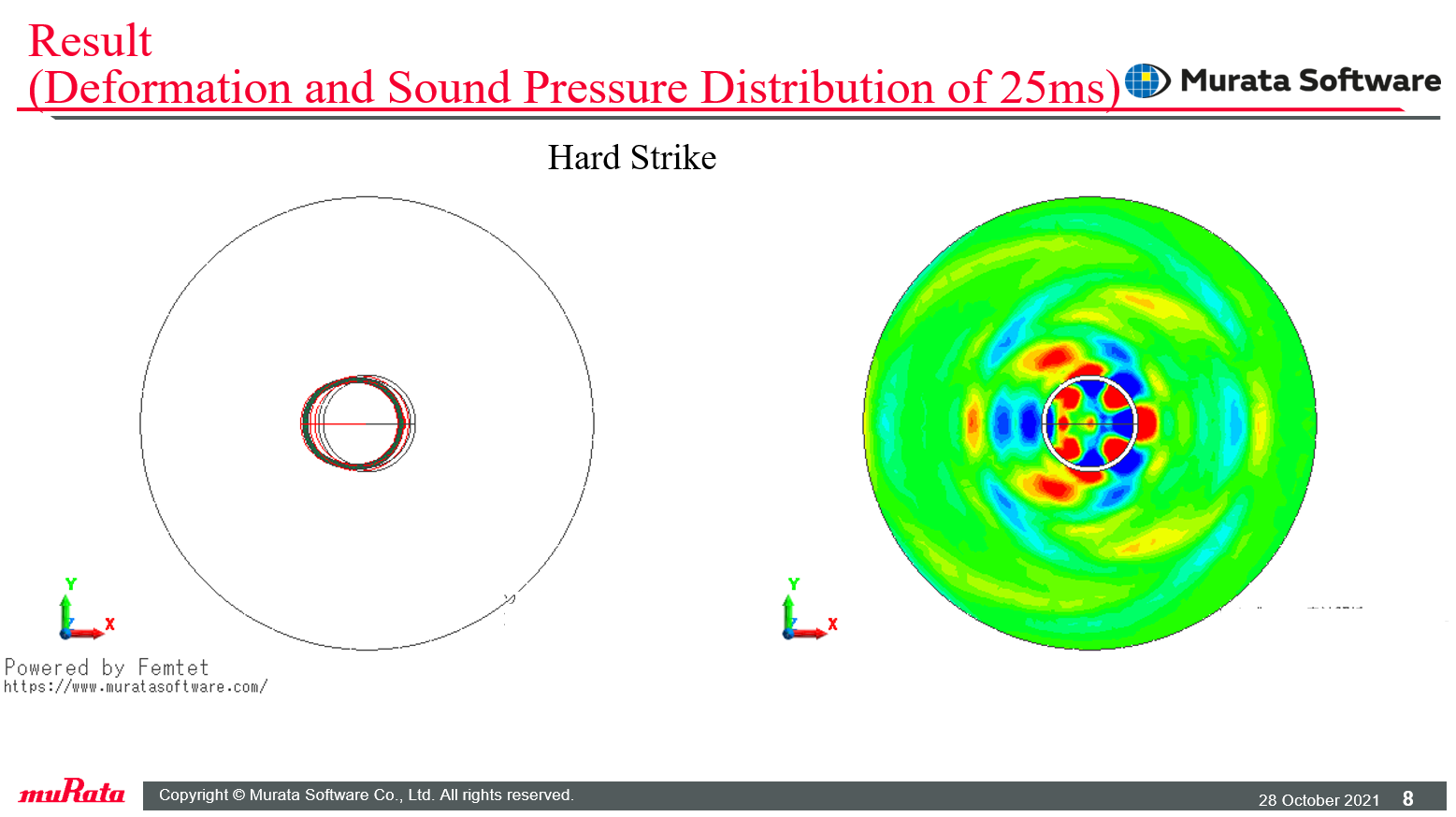

| Result | Depending on the sitiffness of the striking bar (Hard Strike and Soft Strike), the bell deforms differently and affects the sound pressure distribution in the air. |
| Keywords | Bell Vibration Analysis, Bell Acoustic Simulation, Structural-Acoustic Coupled Analysis, Vibroacoustic Analysis, Transient Stress Analysis, Transient Acoustic Analysis, Sound Pressure Distribution Analysis, Acoustic Field Simulation |
