| General | Magnetic flux distribution of an integrated magnetic transformer for the switched-mode power supply was analyzed. The switched-mode power supply is controlled by on/off of the semiconductor switch, and the transformer functions as a component of nonlinear circuit. The behavior of the magnetic fields was calculated for each time segment. |
|---|---|
| Result | Femtet® contributes to the development of the highly efficient switched-mode power supply and its miniaturization. |
| Keywords | Transformer Loss Analysis, High-Efficiency Switched-Mode Power Supplies, Magnetic Design for Power Electronics |
Fig. 1 Integrated Magnetic Transformer

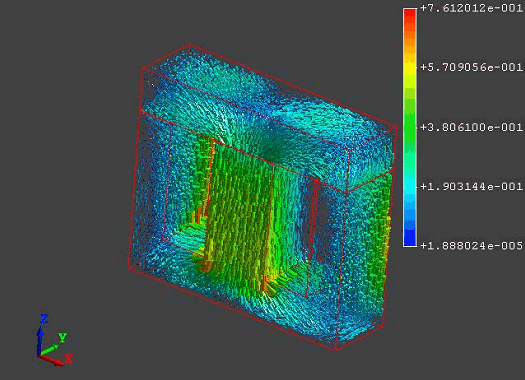

Fig. 2 Magnetic Flux Density Distribution (Switch ON)

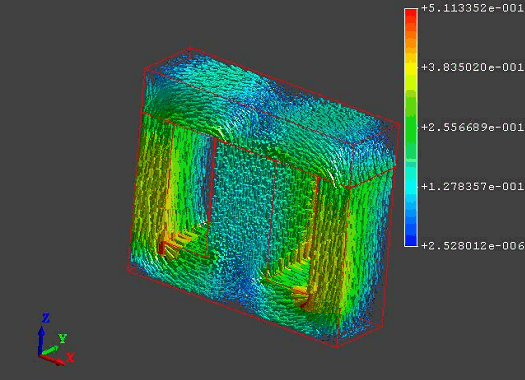

Fig. 3 Magnetic Flux Density Distribution (Switch OFF)
