| General | The leakage inductance of the multilayer coil was analyzed. |
|---|---|
| Analysis Model | Magnetic field harmonic analysis was performed to calculate the impedance (L) and resistance (R) from the complex impedance (Z) for specified frequency. |
| Keywords | Coil Inductance Analysis, Leakage Inductance of Multilayer Coils, Coil AC Resistance |
Fig. 1 Terminals of Secondary Coil

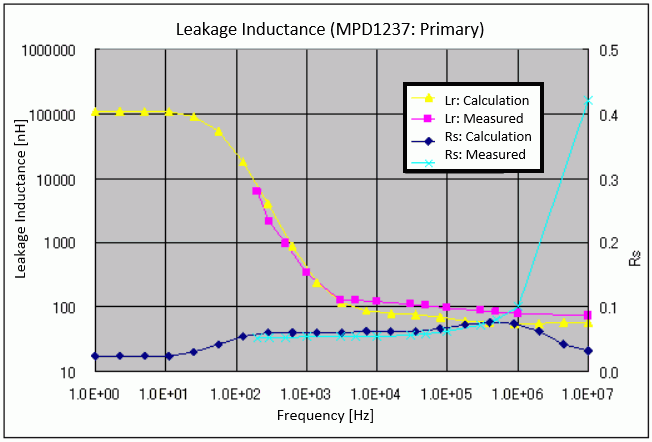

Fig. 2 Short Circuit Impedance of Transformer
