| General | A loop coil having a shape of figure 8 is analyzed. |
|---|---|

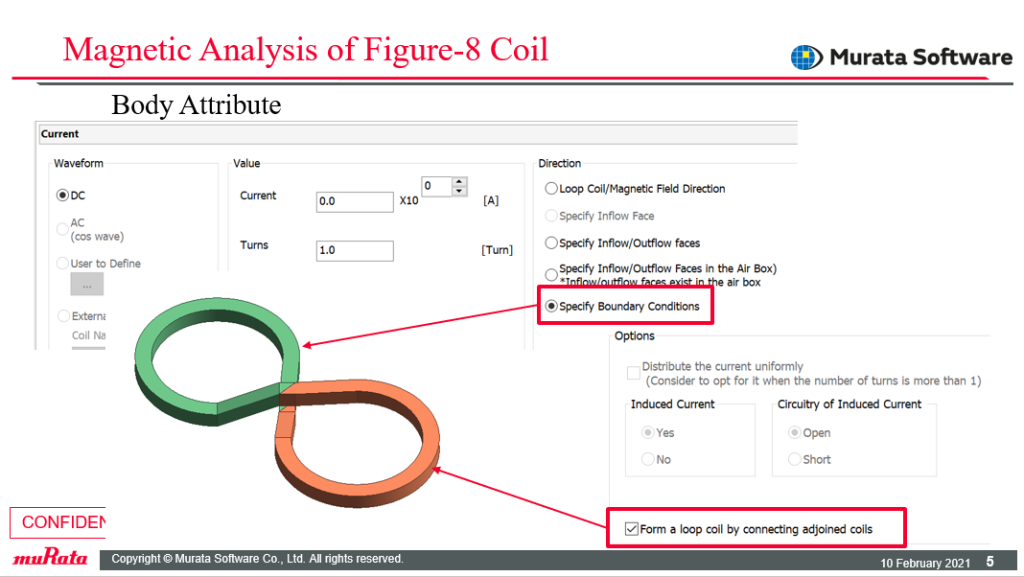

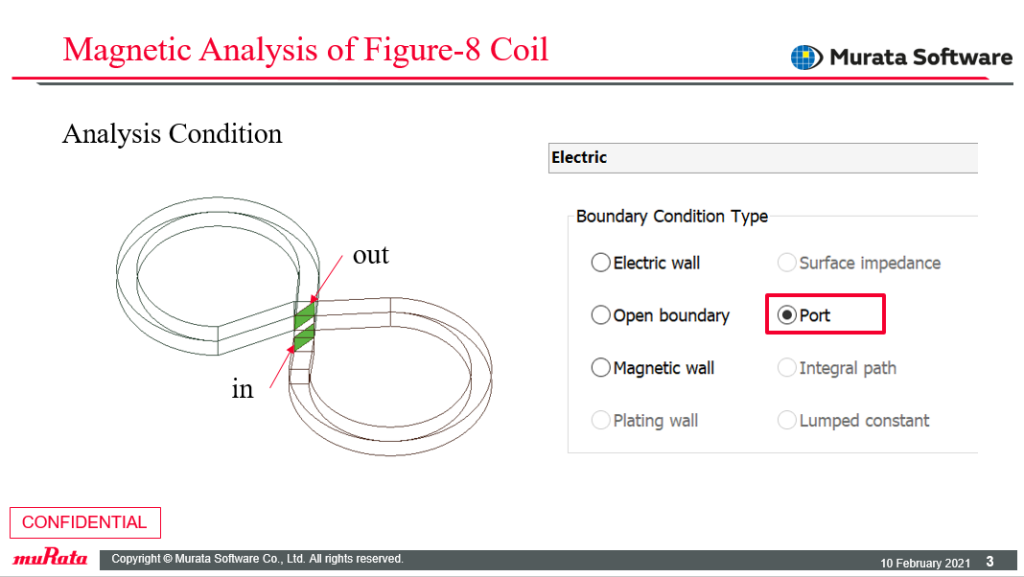

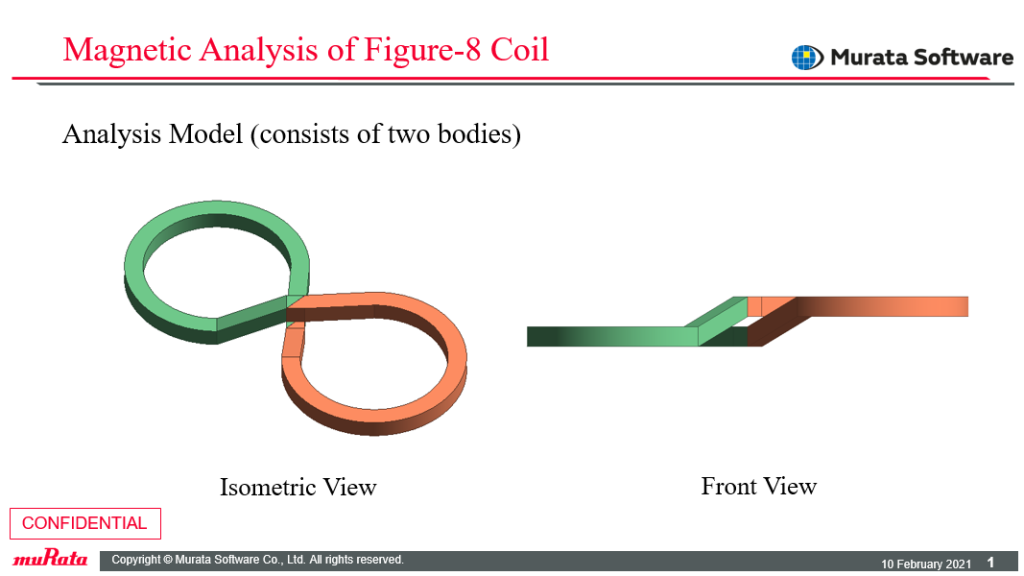

| Analysis Model | An analysis model is as below. The coil is cut into two and a boundary condition of port is set to the cutting faces. Current and turns are set to one of the coils. For another coil, select [Form a loop coil by connecting adjoined coils]. |

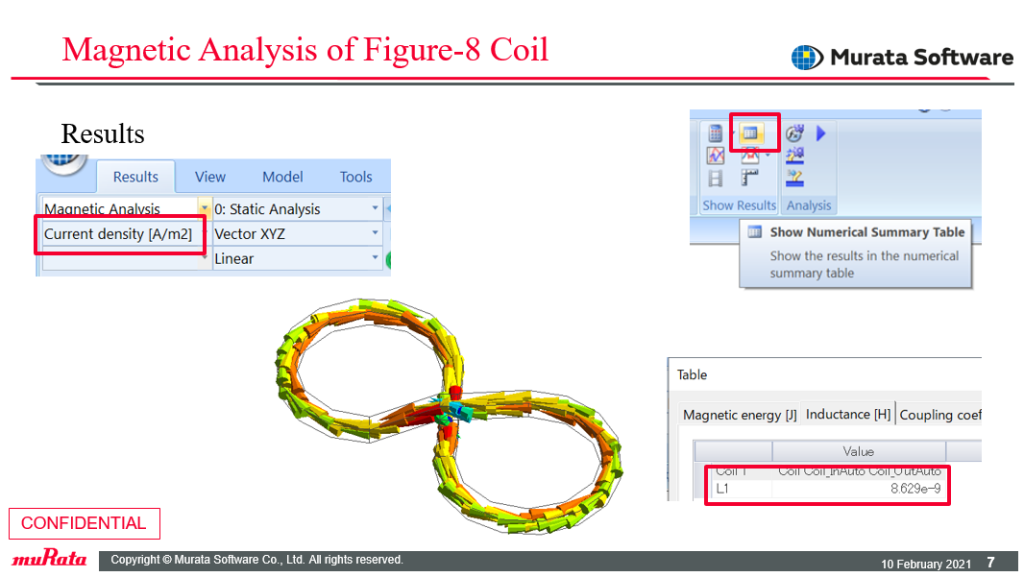

| Result | As the result shows, the current is flowing in the shape of 8. The inductance can be confirmed in the table. |
| Keywords | Figure-Eight Coil Design, Inductance Analysis |
Analysis Model
Port Boundary Condition
Body Attribute
Results
