| General | The example analyzes electromagnetic waves inside a single-mode optical fiber that is popular in long-distance optical communications in the harmonic analysis. |
|---|---|

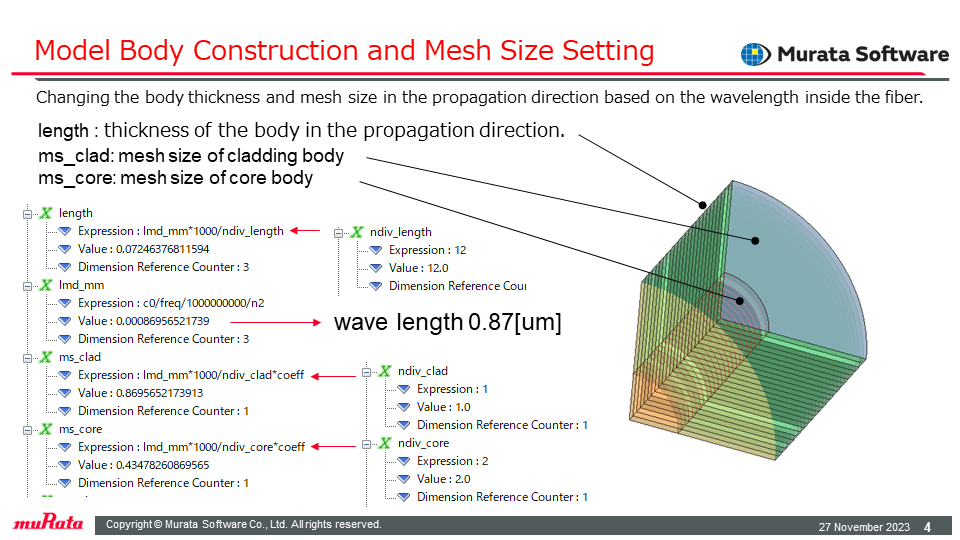

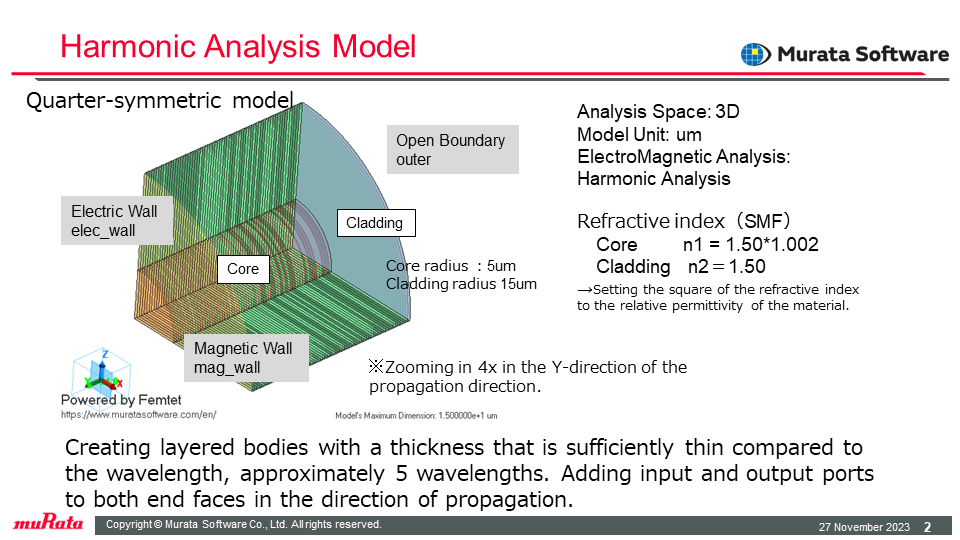

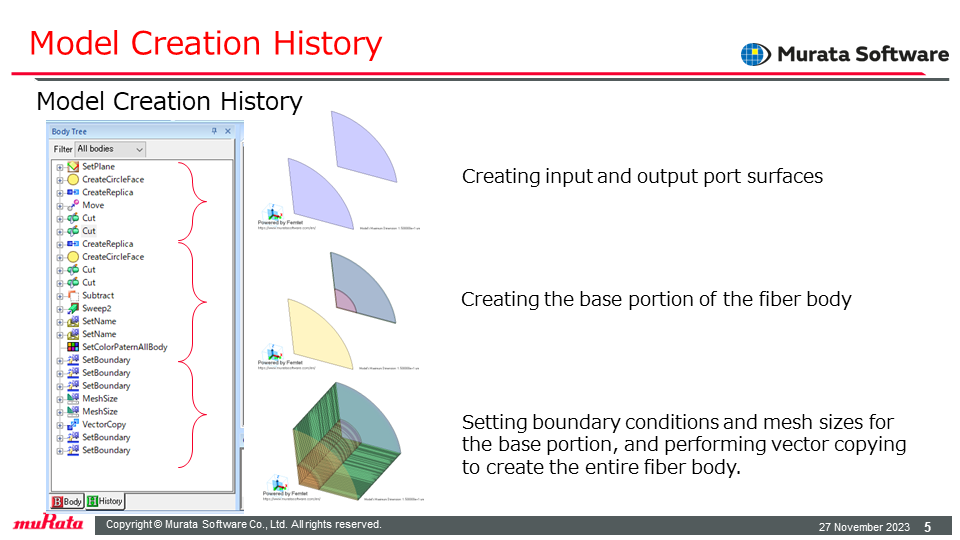

| Analysis Model | A quarter model is analyzed for less computational load. As the wavelength of the propagation mode is shorter than the diameter of the fiber, laminate a body with a thickness significantly smaller than the wavelength to create the model of an optical fiber. |

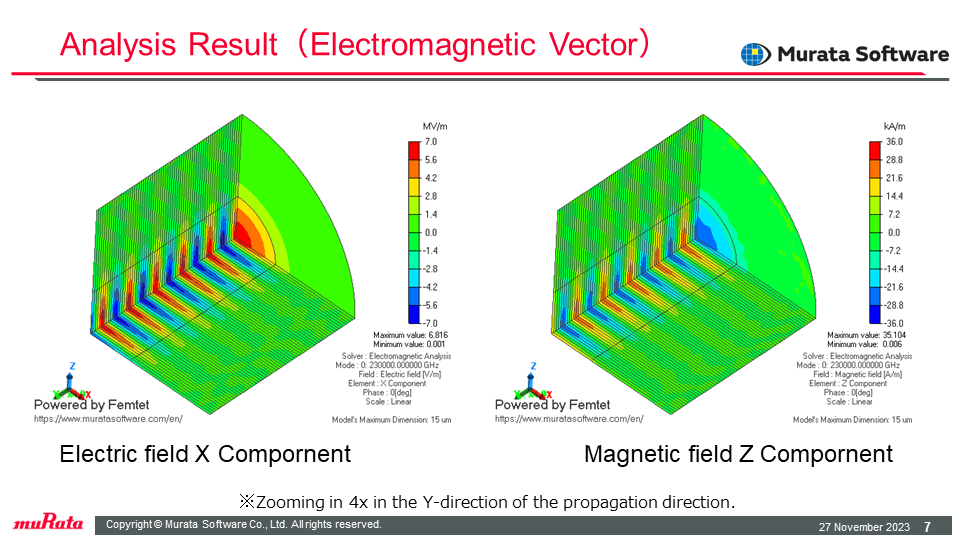

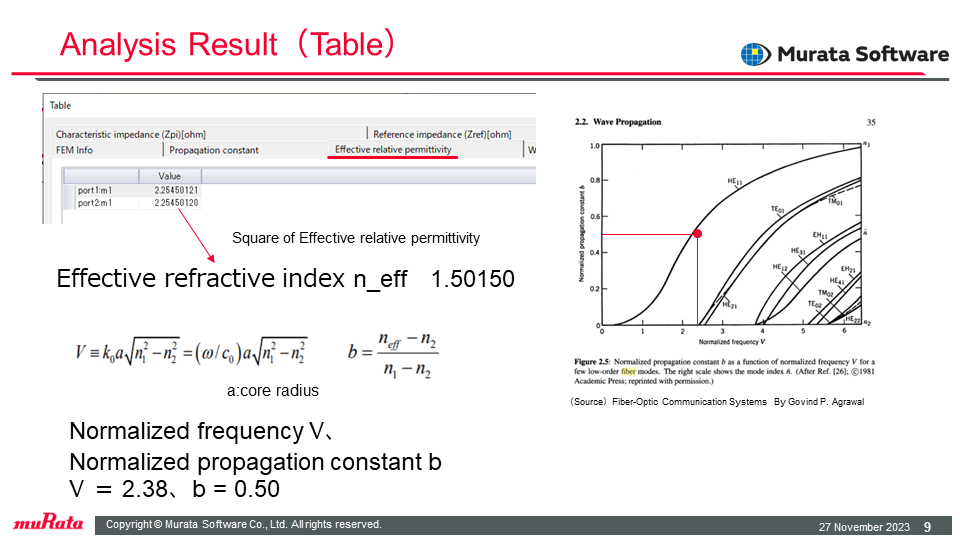

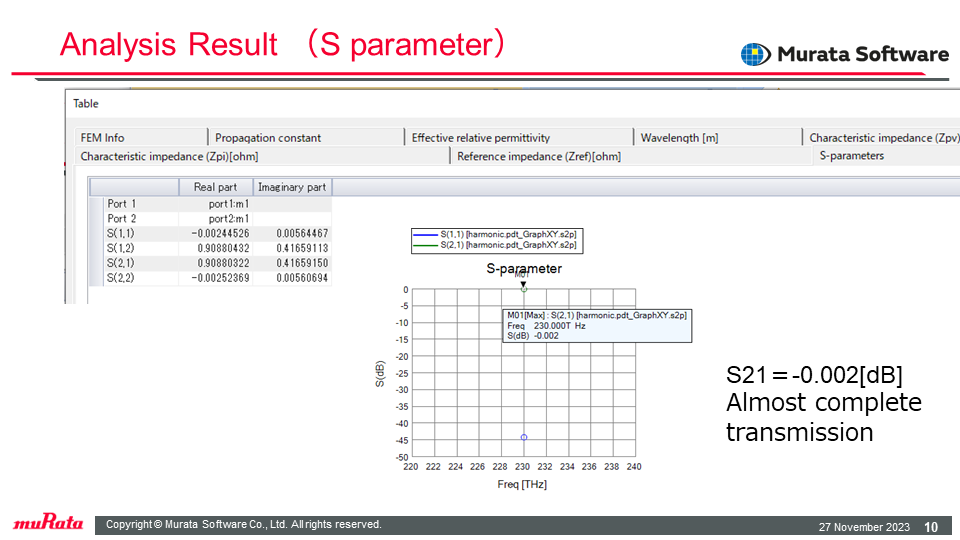

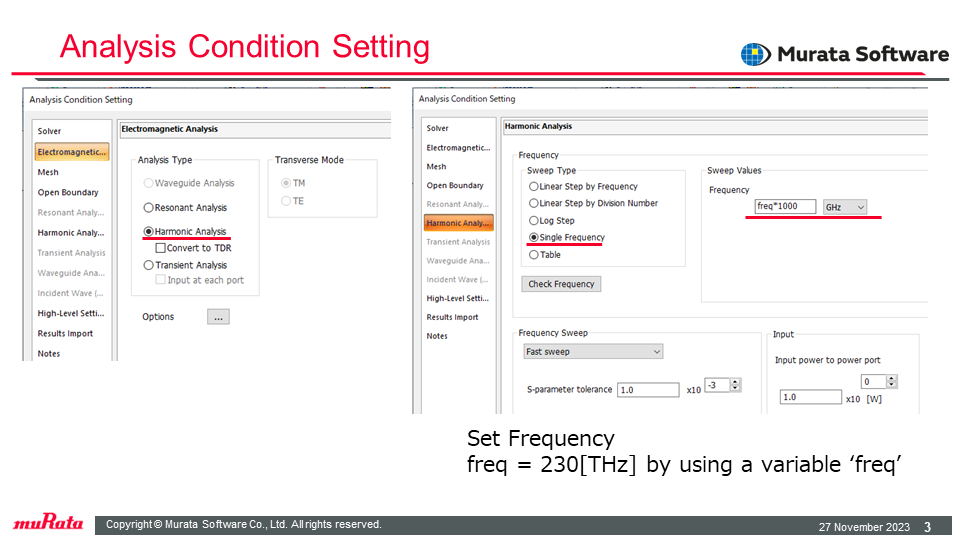

| Result | The result of the harmonic analysis allows you to observe the magnetic waves propagate concentrated in the core of the fiber and acquire S-parameters. |
| Keywords | Optical Fibers, Optical Communication, Harmonic Analysis, S-Parameters |
