Magnetic Field Distribution of Coil Antenna and Capacitor

General	The magnetic field distribution is solved for a coil antenna and a resonance capacitor in the LF band.
Analysis Model	Magnetic field transient analysis coupled with an external circuit is used.
Keywords	External Circuit Coupling, Coil Antenna, LC Resonant Circuit

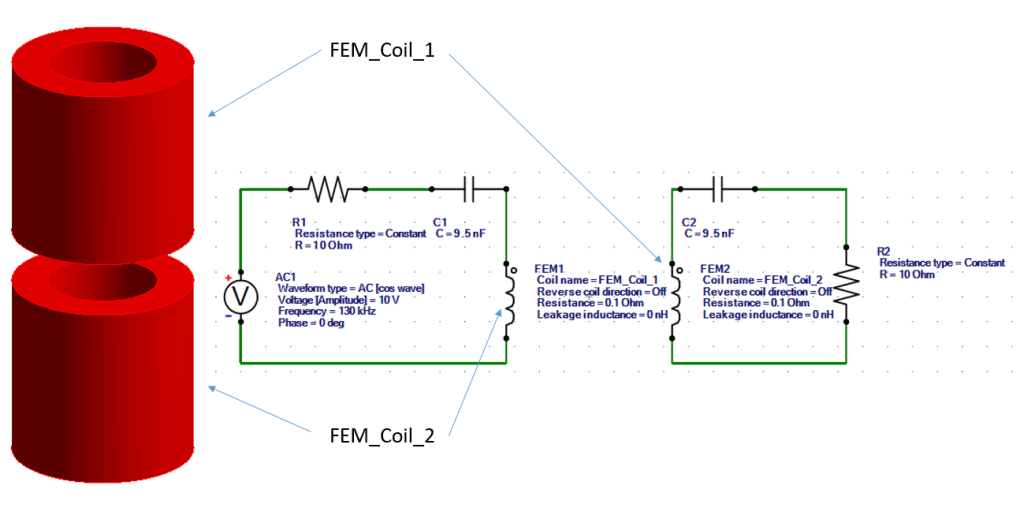

Model and circuit

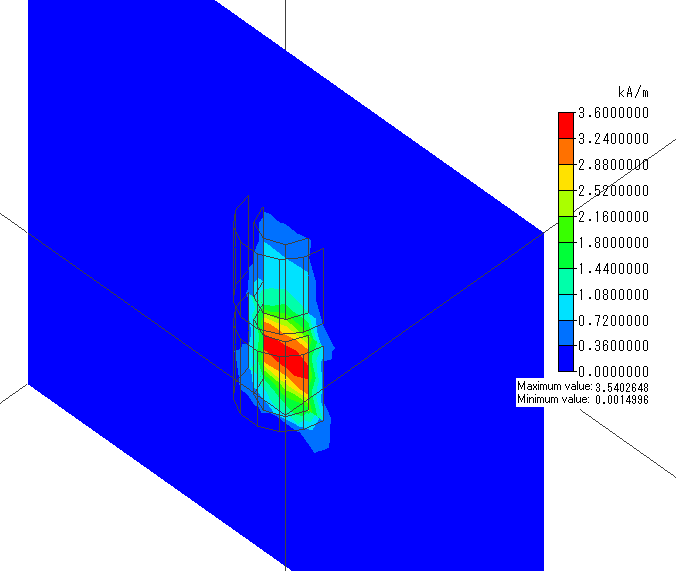

Magnetic field distribution
