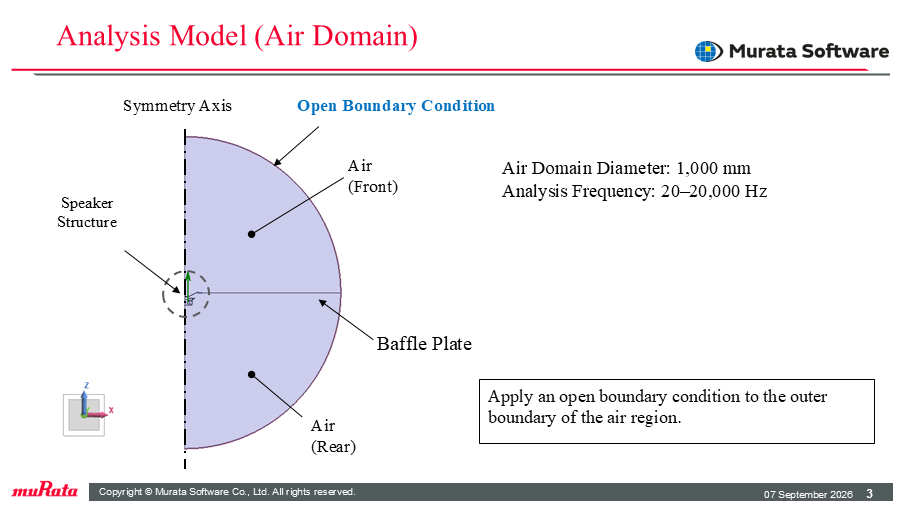

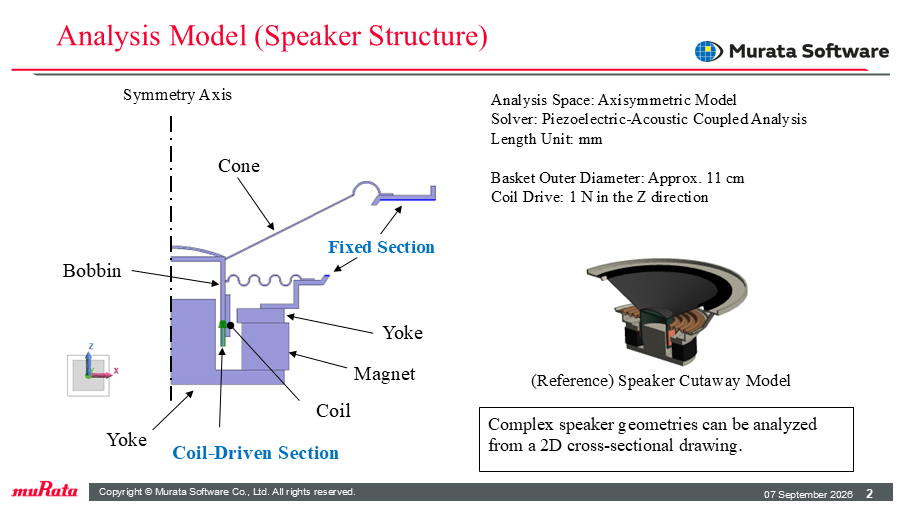

| Analysis Model | The analysis model is an axisymmetric model representing a typical dynamic speaker structure. The baffle separates the sound waves radiated from the front and rear of the speaker. By analyzing the sound waves radiated into the surrounding air domain, the evaluation environment is reproduced. |

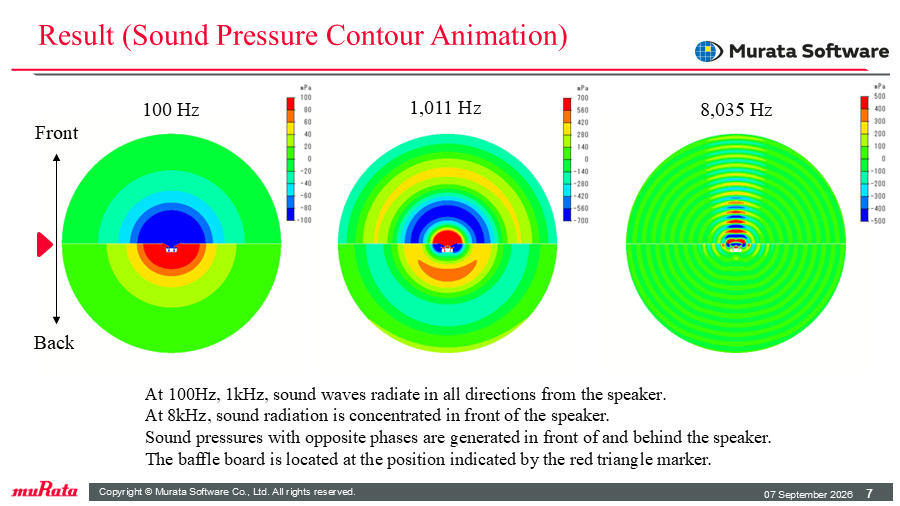

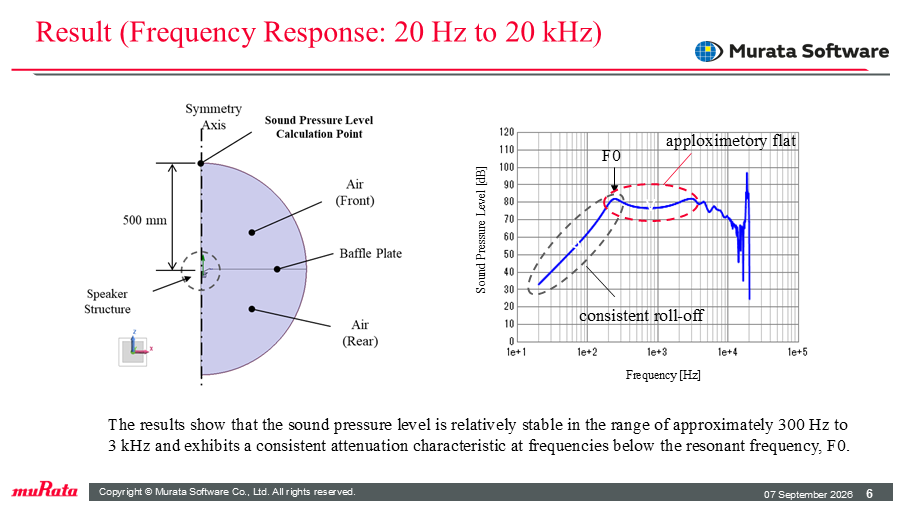

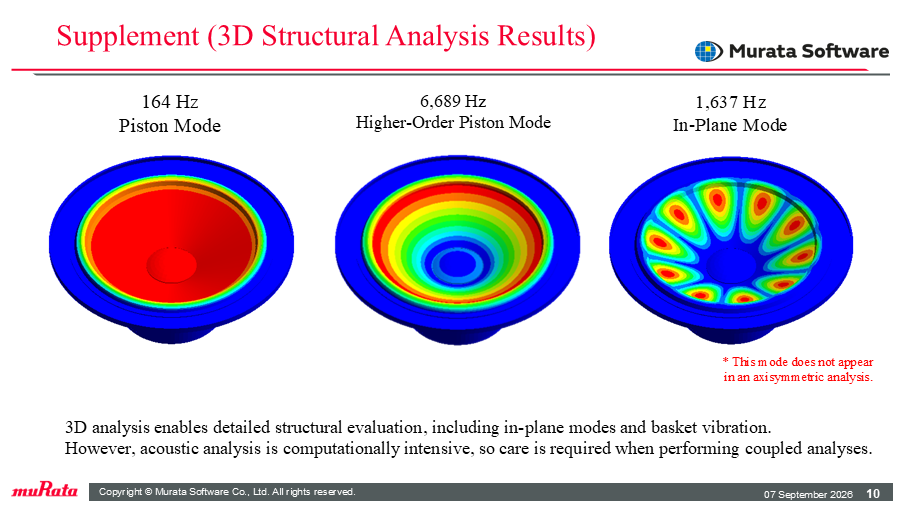

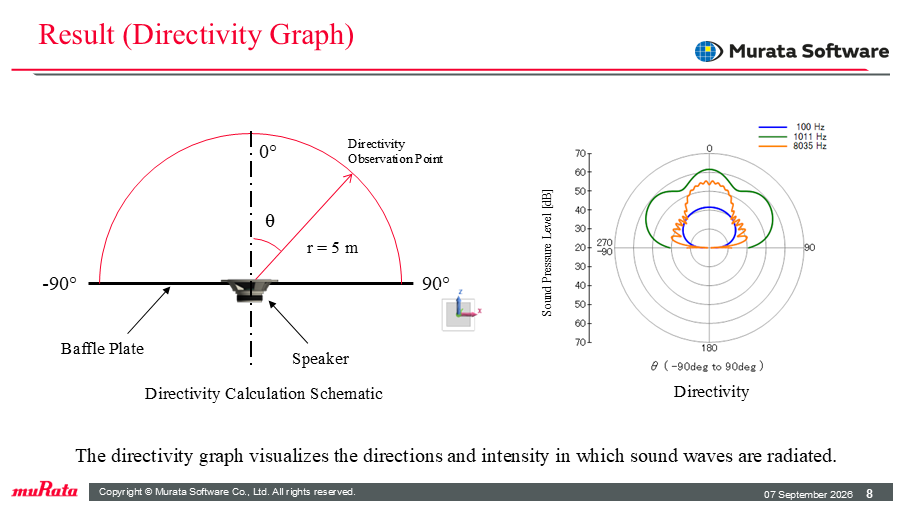

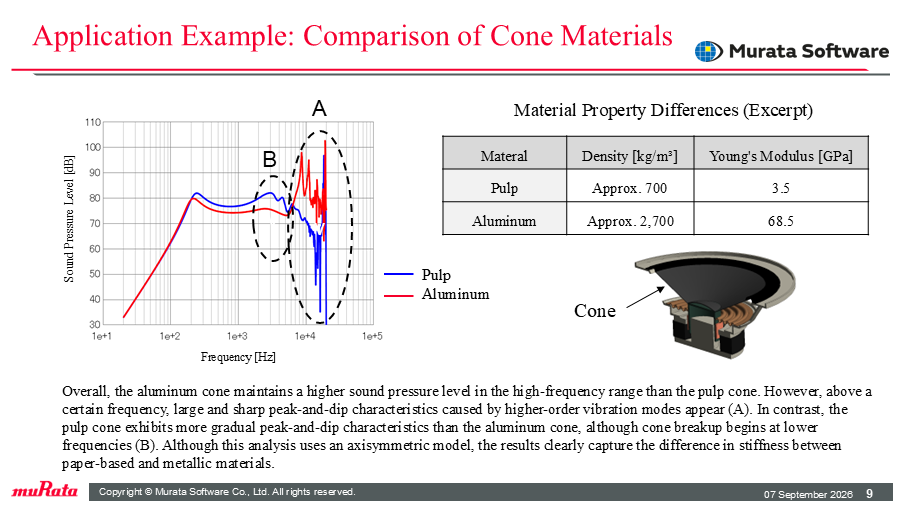

| Result | The analysis results allow the sound pressure level frequency response, including the speaker’s mechanical resonance frequency F0, to be evaluated. In addition, sound pressure contour plots and directivity graphs can be used to evaluate the sound field distribution around the speaker unit and differences in radiation direction. Visualization of structural vibration can also be used to identify unwanted vibration modes. |
| Keywords | Speaker Unit, Frequency Response, Sound Pressure Level, Directivity Analysis, Unwanted Vibration Modes, Acoustic Field Analysis |
