| General | Temperature distribution of the insulated DC-DC converter was analyzed. |
|---|---|
| Analysis Model | |
| Result | Internal temperature distribution of the model is shown in the Figures 2 and 3 below. By knowing the temperature distribution at the early stage of designing, you can efficiently design the substrate that reduces the temperature rise. |
| Keywords | DC-DC converter,Heat Generation,Temperature Distribution,PCB Design |
Fig. 1 Analysis Model

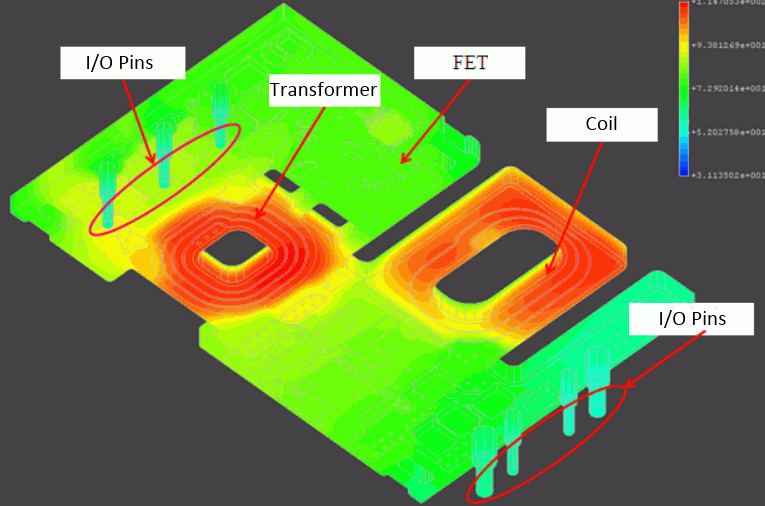

Fig. 2 Internal Temperature Distribution (Top Side)

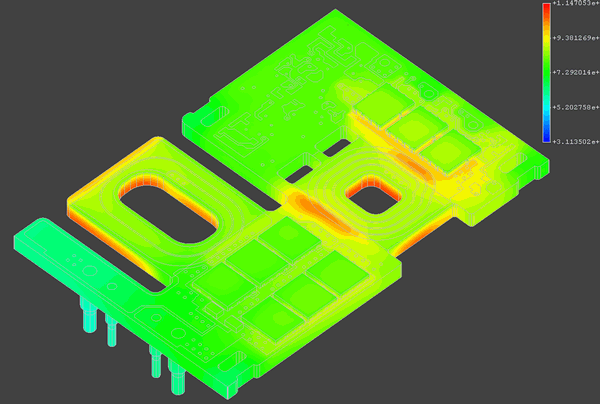

Fig. 3 Internal Temperature Distribution (Bottom Side)
