Home / Examples / Stress Analysis [Galileo] / Example 5: Ring under Forced Normal Displacement
A ring is deformed due to the forced normal displacement.
The distributions of displacement and stress are solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
This is a static analysis.
Item |
Settings |
Solver |
Stress analysis [Galileo] |
Analysis Type |
Static Analysis |
Options |
N/A |

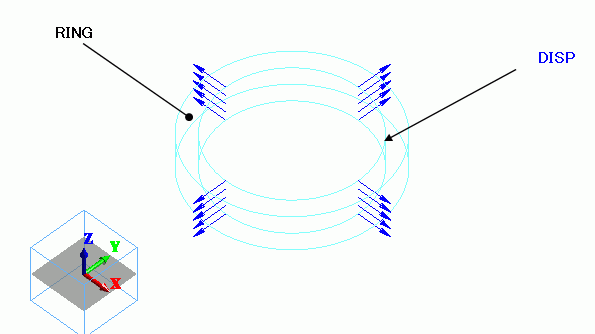

Two cylindrical solid bodies are created. The smaller cylinder is subtracted from the larger cylinder by boolean. As a result, a ring is created.
The inner face of the ring is set with the simple contact boundary condition.
Body Number/Type |
Body Attribute Name |
Material Name |
0/Solid |
RING |
001_Al * |
* Available from the material DB
The normal displacement is set as follows:
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
DISP/Face |
Mechanical |
Normal Displacement |
0.5X10-3 [m] |

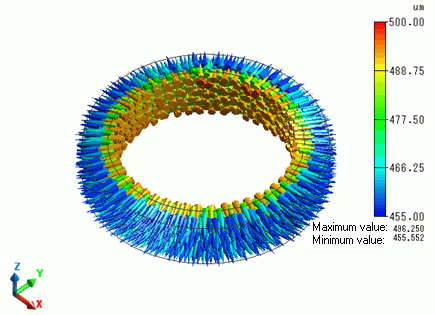

The vectors of the displacement are shown below.
The inner side of the ring is displaced by 0.5 [mm] according to the boundary condition. The outer side is displaced less.

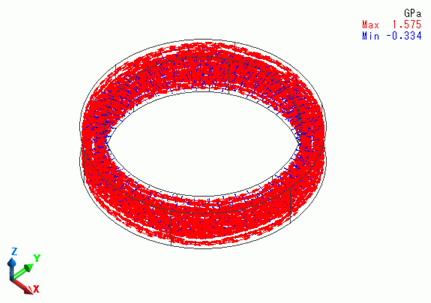

The vectors of the stress are shown below.
The tensile stress is exhibited in the circumferential direction, while the compressive stress is exhibited in the radial direction.
