Stress analysis [Galileo]

Click the example number to see the example page

Number	Example Title	Simulation Image	Setup Conditions
1	Cantilever under Distributed Load		Static Analysis Fixed Displacement Distributed Face Load
2	Disc under Distributed Load		Static Analysis Fixed Displacement in Z Direction Distributed Face Load
3	Cantilever with Forced Displacement		Static Analysis Forced Displacement

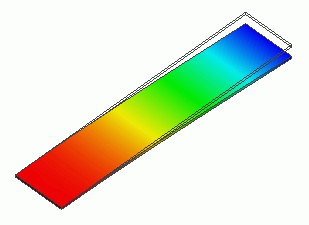

4	Cantilever under Gravity		Static Analysis Acceleration Option
5	Ring under Forced Normal Displacement		Static Analysis Normal Displacement
6	Deformation of Spring Plate		Static Analysis Large Deformation (Large Displacement)
7	Bimetal under Thermal Load		Static Analysis Thermal Load Option
8	Bar Fixed at Both Ends Subjected to Thermal Load		Static Analysis Thermal Load Option
9	Bimetal under Multi-Step Thermal Load		Static Analysis Multi-step Thermal Load Analysis
10	Multi-Step Thermal Load Analysis for IC Soldering Process		Static Analysis Multi-step Thermal Load Analysis Birth step

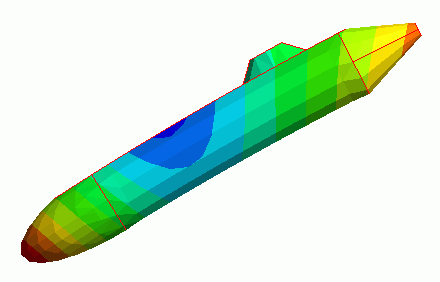

11	Resonance of Church Bell		Resonant Analysis
12	Resonance of Metal Bars		Resonant Analysis Fixed Displacement
13	Resonance of Tuning Fork		Resonant Analysis
14	Resonance of Cantilever		Resonant Analysis Fixed Displacement
15	Harmonic Analysis of Tuning Fork		Harmonic Analysis Forced Displacement
16	Harmonic Analysis of Standing Bars		Harmonic Analysis Forced Displacement

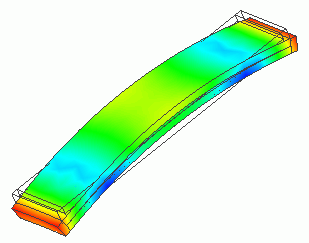

17	Material with Anisotropic Coefficient of Linear Thermal Expansion		Static Analysis Anisotropic Coefficient of Linear Thermal Expansion Thermal Load Option
18	Material with Anisotropic Elasticity		Static Analysis Anisotropic Elasticity Pressure

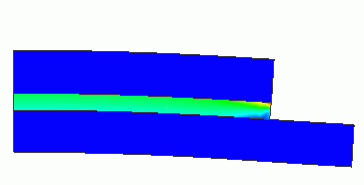

19	Two Plates Adhered at One End (Simple Contact #1)		Static Analysis Thermal Load Option Simple Contact

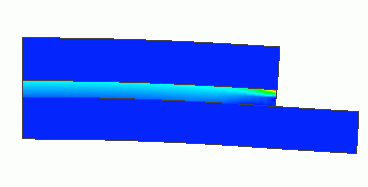

20	Two Plates Adhered at One End (Simple Contact #2)		Static Analysis Thermal Load Option Simple Contact
21	Plastic Block Set with Uniform Displacement		Static Analysis Thermal Load Option Uniform Displacement
22	Blocks Set with Discontinuous Boundary		Static Analysis Fixed Displacement Distributed Edge Load Discontinuous Boundary

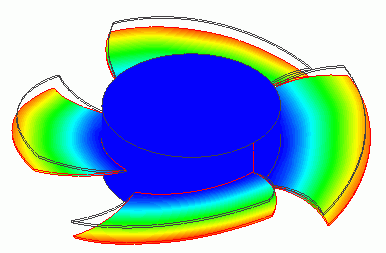

23	Deformation due to Centrifugal Force		Static Analysis Angular Velocity
24	Stress Analysis of a Tool		Static Analysis Fixed Displacement Distributed Face Load
25	Cylinder under Fixed Normal Displacement Subjected to Thermal Load		Static Analysis Thermal Load Option Normal Displacement
26	Deformation of Cantilevers made of Elasto-Plastic Bilinear Material and Elastic Material		Static Analysis Acceleration Option Unloading Process Elasto-plastic/Bilinear
27	Sphere Contacting Rigid Wall		Static Analysis Contact Analysis
28	Contact Analysis with Large Deformation		Static Analysis Large Deformation (Large Displacement) Contact Analysis
29	Contact Analysis of Two Cantilevers		Static Analysis Large Deformation (Large Displacement) Contact Analysis Symmetric Boundary Elasto-plastic/Bilinear Include the unloading process
30	Material with Temperature-Dependent Anisotropic Coefficient of Linear Thermal Expansion		Static Analysis Anisotropic Coefficient of Linear Thermal Expansion Temperature Dependency Multi-step Thermal Load Analysis
31	Material with Temperature-Dependent Anisotropic Elasticity		Static Analysis Anisotropic Elasticity Temperature Dependency Multi-step Thermal Load Analysis
32	Elastic Collision		Transient Analysis Large Deformation (Large Displacement) Contact Analysis
33	Analysis of an Fallen Object		Transient Analysis Large Deformation (Large Displacement) Contact Analysis
34	Energy Release Rate		Static Analysis Strain Energy
35	Elasto-Plastic Bilinear Material Subjected to Thermal Load		Static Analysis Elasto-plastic/Bilinear Kinetic/Isotropic Hardening Temperature Dependency Thermal Load
36	Damping Vibration of Cantilever		Transient Analysis Rayleigh Damping Coefficients Time Dependency Distributed Load Boundary
37	Plastic Deformation due to Repetitive Displacement		Static Analysis Multiple Steps Time Dependency Death of Bodies Elasto-plastic/Bilinear
38	Elasto-Plastic Material Subjected to Repetitive Thermal Loading		Static Analysis Multi-step Thermal Load Analysis Temperature Dependency Elasto-plastic Multilinear Material
39	Elasto-Plastic Creep Material Subjected to Repetitive Thermal Loading		Static Analysis Multi-step Thermal Load Analysis Temperature Dependency Elasto-plastic Creep Material
40	Deformation of Elasto-Plastic Multilinear Material		Static Analysis Elasto-plastic Multilinear Material
41	Stress of Substrate Coated with Thin Film		Static Analysis Initial Strain
42	Analysis of Shaft and Ring with Initial Strain		Static Analysis Initial Strain Simple Contact
43	Frictional Contact (#1)		Static Analysis Simple Contact Coefficient of Friction
44	Frictional Contact (#2)		Transient Analysis Contact Analysis Coefficient of Friction
45	The Mating of Connector		Static Analysis Contact Analysis Contact Force

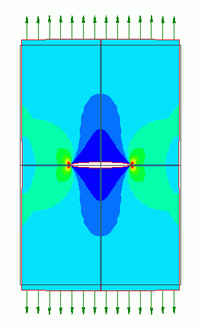

46	Energy Release Rate Calculated by J Integral		Static Analysis Discontinuous Boundary J Integral
47	Contact Analysis with Peeling Taken into Account		Static Analysis Multi-step Thermal Load Analysis Simple Contact Peel Strength
48	Buckling Analysis		Buckling Analysis
49	Fatigue Life Assessment for Solder Ball		Static Analysis Multi-step Thermal Load Analysis Temperature Dependency Elasto-plastic creep material Fatigue Life Assessment
50	Harmonic Analysis of A Tower with Mechanical Loss		Harmonic Analysis Mechanical Loss 1/Qm
51	Deformation of Viscoelastic Bar		Static Analysis Multi-step Thermal Load Analysis Viscoelastic Material
52	How to View the Stress in the User-defined Direction		Static Analysis Forced Displacement User-Defined Field
53	Triangular Distributed Load		Static Analysis Pressure Distributed Boundary Condition (Distribution Data)
54	Inelastic Collision		Transient Analysis Elasto-plastic Material Large Displacement Large Strain
55	Rotational Displacement Analysis of Plate		Static Analysis Large Displacement Rotational Displacement
56	Buckling Analysis of Bimetal Switch		Static Analysis Multi-step Thermal Load Analysis Large Displacement
57	Hydrostatic Pressure		Static Analysis Pressure Distributed boundary condition (Distribution Data) Outer Boundary Condition
58	Spring Back Analysis with ON/OFF Setting		Static Analysis Multiple Steps Rotational Displacement (Boundary Condition ON/OFF) Elasto-plastic/Bilinear

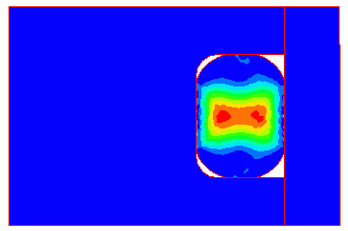

59	Compression Analysis of O-Ring		Static Analysis Contact Analysis Coefficient of Friction Hyperelastic Material
60	Warp of Substrate in the Cooling Process of Resin		Static Analysis Thermal Load Viscoelastic Material Viscoelasticity (Simple Setting)
61	Resonant Analysis of Beam with Effect of Its Self Weight Taken into Account		Resonant Analysis Analysis with Initial Stress Taken into Account
62	Plane Stress of Multilayer Sheet		Static Analysis Thermal Load Plane Stress
63	O-Ring with Initial Strain		Static Analysis Initial Strain Contact Analysis Coefficient of Friction Hyperelastic Material Large Deformation
64	Elastic Collision with Initial Velocity Distribution		Transient Analysis Initial Velocity Distribution Contact Analysis Coefficient of Friction Large Deformation
65	Contact Analysis of Bending Plate		Static Analysis Contact Analysis Large Deformation
66	Joint Load		Static Analysis Joint Load Simple Contact Symmetric Boundary
67	Spring Connection		Static Analysis Spring Connection Large Deformation
68	Analysis with Overlapping Meshes		Static Analysis Contact Analysis Meshing Space
69	Simplified Model for Bracket Analysis Using Remote Load		Static Analysis Remote Load
70	Stress Analysis Using Results (Pressure) Imported from Fluid Analysis		Static Analysis Results Import
71	Stress Analysis Using Results (Reached Temperature) Imported from Fluid-Thermal Analysis		Static Analysis Large Displacement Thermal Load Results Import (Reached Temperature)
