The material has the temperature-dependent anisotropic coefficient of linear thermal expansion. The deformation under thermal load is analyzed.
Multi-step thermal load analysis is performed with multiple reached temperatures. The stresses for each reached temperature are solved.
Unless specified in the list below, the default conditions will be applied.
Results will vary depending on Femtet version and the PC environment.
Item |
Settings |
Analysis Space |
3D |
Model Unit |
mm |
The temperature is applied evenly on the model.
Opt for the thermal load in the analysis condition, and set the reference temperature and the reached temperature.
There is no need to couple with the thermal analysis [Watt].
Item |
Settings |
Solver |
Stress Analysis [Galileo] |
Analysis Type |
Static Analysis |
Options |
Select Thermal Load |
The Step/Thermal Load tab is set as follows.
In this setting, thermal load analysis is performed with 3 reached temperatures step by step.
Tab |
Setting Item |
Settings |
|||||||||||
Step/Thermal Load |
Step Setting |
Multi-step Thermal Load Analysis |
|||||||||||
Reference temperature |
25[deg] |
||||||||||||
Step/Reached Temperature Setting |
|

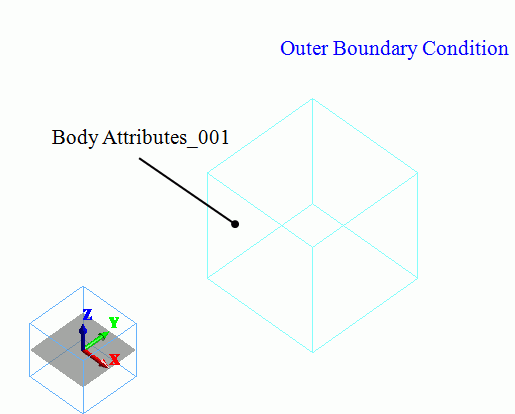

The model is a cubic solid body. The material has the temperature-dependent anisotropic coefficient of linear thermal expansion. The outer boundary condition is
set with no displacement.

The temperature dependency for the coefficient of linear thermal expansion is set for the range of 25-50, 50-75, and 75-100 [deg].
For each temperature range, the anisotropy is set.
Material Name |
Tab |
Properties |
Material_Property_001 |
Elasticity |
Material Type: Elastic/Isotropic Temperature Dependency: No Young's Modulus: 1×109 [Pa] Poisson's Ratio: 0.3 |
Coefficient of Linear Thermal Expansion |
Temperature Dependency: Yes Anisotropy: Anisotropic

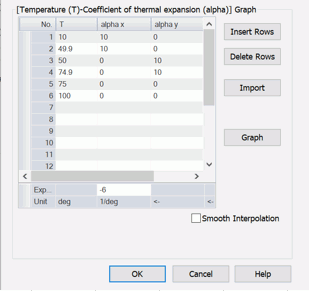

The temperature dependency of the coefficient of linear thermal expansion is set as follows. The direction of the body attribute is by default. Components (x, y, z) of the coefficient of linear thermal expansion correspond to the coordinates (X, Y, Z) of the modeling window.
* This is not the actual material's property. |
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
Outer Boundary Condition |
Mechanical |
Displacement |
Select all X/Y/Z components. UX=0, UY=0, UZ=0 |

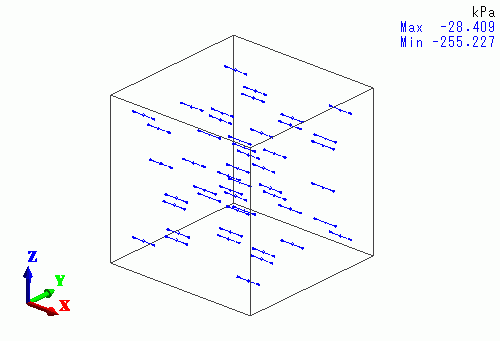

The figure below shows the principal stress at 50 deg.

From 25 to 50 deg, it is supposed to expand in X direction. However, as the outer boundary is fully fixed, the compressive stress is exhibited instead.
The figure below shows the principal stress at 75 deg.

From 50 to 75 deg, it is supposed to expand in Y direction. Again, as the outer boundary is fully fixed, the compressive stress in Y direction is exhibited instead, and added to that of X direction.

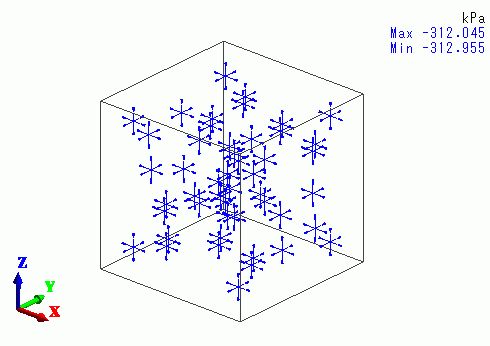

The figure below shows the principal stress at 100 deg.

From 75 to 100 deg, it is supposed to expand in Z direction. Again, as the outer boundary is fully fixed, the compressive stress in Z direction is exhibited instead, and added to those of X and Y directions.
