A plate with elasto-plastic multilinear material is deformed by forced displacement.
The deformation, the displacement distribution, and the stress distribution are solved.
Unless specified in the list below, the default conditions will be applied.
Elasto-plastic analysis is available in an optional package.
Item |
Settings |
Analysis Space |
Axisymmetric |
Model Unit |
m |
Item |
Settings |
Solver |
Stress Analysis [Galileo] |
Analysis Type |
Static Analysis |
The nonlinear analysis is set up on the Step/Thermal Load tab as follows. All results are output.
Tab |
Setting Item |
Settings |
Step/Thermal Load |
Step/Reached Temperature Setting |
Substeps of Step 1 : 10 |
Options for the Nonlinear Analysis |
Save the results of substeps : Select |
The default number of substeps is 20. It is adjusted to 10 in this example. Therefore the forced displacement is incrementally increased by 10%.
[Save results of substeps] is selected by default to see the results at all 10 steps.
This model is axisymmetric. The axis of symmetry is Z-axis. The 3D body is actually a circular rod.
The body is made of the elasto-plastic multilinear material named "ML" and a forced displacement is applied on the top face of the body.
Body Number/Type |
Body Attribute Name |
Material Name |
2/Sheet Body |
BA1 |
ML |
The material properties are set up as follows:
Material Name |
Tab |
Properties |
ML |
Elasticity |
Material Type: Elasto-plastic/Multilinear Young's Modulus: 69x109 [Pa] Poisson's Ratio: 0.3
The plastic strain-stress multilinear curve of ML is shown bellow. This characteristic has been set on the [Plastic strain - Stress] Multilinear table in the dialog box which appears when the button located in the [Plastic Strain - Stress Multilinear Curve] is clicked.
|
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
Sym_z/Edge |
Symmetry/Continuity |
Symmetry |
Select Reflective |
Pull_z/Edge |
Mechanical |
Displacement |
Select the Z component. Uz=0.2x10-3 [m] |
The displacement at the step 1 is shown below.
The color contour shows the distribution of accumulated equivalent plastic strains.
True Scale is selected on the Displacement Diagram tab of Graphics Setup.
[Full Model] is selected.
High strains are exhibited in the narrow part of the body.

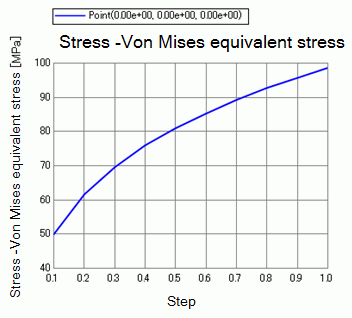

The charts below shows Accumulated equivalent plastic strain vs. Modes and von Mises equivalent stress vs. Modes at (0, 0, 0).
- Accumulated Equivalent Plastic Strain
- Von Mises Equivalent Stress
A1100 (ML)'s plastic strain and Mises's equivalent stress are plotted together for comparison.
These plots match quite well.
