Example 5: Heating of Conductive Strip (Current Specified)

General

• The model is a strip line having bend shapes. An electric potential is given across the strip line and the electric current is solved in the electric analysis.
  Then the eventual joule loss and temperature rise are solved in the thermal analysis.


• Current is specified in the boundary condition setting.


• The current distribution and the temperature distribution can be viewed.


• Unless specified in the list below, the default conditions will be applied.


• Obtain this session's project file. (Right-click and choose 'Save link as')




• Results will vary depending on Femtet version and the PC environment.



Analysis Space

Item	Settings
Analysis Space	3D
Model Unit	mm



Analysis Conditions

Select an electric solver [Coulomb] and a thermal solver [Watt] to execute coupled analysis.

For analysis type, select steady-state analysis to obtain the results only in the steady state.

Item	Settings
Solver	Electric Analysis [Coulomb] Thermal Analysis [Watt]
Analysis Type	Steady-state Analysis

Model

The substrate is a box solid body.
The strip line is a sheet body on the substrate.



Body Attributes and Materials

Body Number/Type	Body Attribute Name	Material Name
0/Solid	Board	001_Alumina *
6/Sheet	StripLine	008_Cu *

* Available from the ｍaterial DB



It is assumed that there is no current flow in the alumina substrate.

The conductive strip is a sheet body. The thickness must be defined in the body attribute, where the resistance can be entered too.

Current and heat quantity will vary depending on the thickness.

Body Attribute Name	Thickness/Width	Analysis Domain
Board		Solver: Deselect Electric Analysis (Coulomb)
StripLine	Thickness of Sheet Body : 0.1mm



Resistivity/conductivity is required to be set to “Board” to run the Coulomb/Watt solver
even though it is not used in the electric analysis. As the resistivity in the database of the 001_Alumina is not defined by default,

the value is temporarily set to 1.0. (The result will not be affected)

Material Name	Resistivity
001_Alumina	1.0 [Ωm]

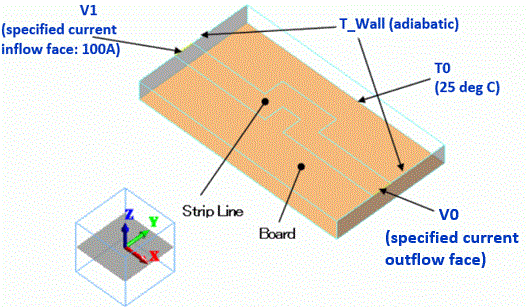

Boundary Conditions

• The temperature of the bottom face of the substrate is set to 25 [deg] using the boundary condition of T0.

• The [Adiabatic] boundary condition is set to the faces that the strip line ends using the boundary condition of T_Wall.
  This keeps the outer boundary condition from being applied on the faces.

• Boundary condition V1 defines the current at the ends of the strip line.
  Boundary condition V0 represents the outflow face of current.

• The heat transfer to the ambient, air at 25°C, is defined by the outer boundary condition.



Boundary Condition Name/Topology	Tab	Boundary Condition Type	Settings
T_Wall/Face	Thermal	Adiabatic
T0/Face	Thermal	Temperature	25 [deg]
V0/Edge	Electric	Electric Wall	Current Specified, Outflow Face
V1/Edge	Electric	Electric Wall	Current Specified, Waveform: Constant, Inflow face, Current: 100 A
Outer Boundary Condition *	Heat	Heat Transfer/Convection	Coefficient of Heat Transfer: 10 [W/m2/deg] Ambient Temperature: 25 [deg]



To set Outer Boundary Condition, go to the [Model] tab




and click [Outer Boundary Condition] .



Results

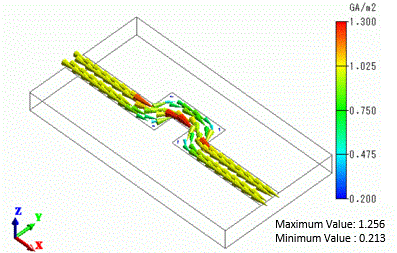

The vectors of the current density are shown below.

The current density is not even at around the bending area of the strip line.

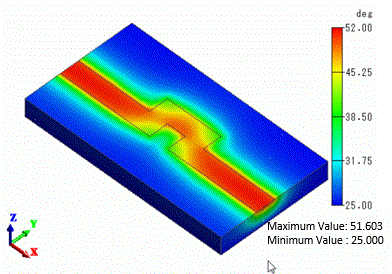

The temperature contour as a result of the thermal analysis (Watt) is shown below.

It is observed that heat raises the temperature of the strip line and transfers towards the substrate.
