Example 14: Harmonic Analysis of Conductor
General
-
Harmonic analysis is performed for the U-shaped conductor in the air.
-
The model's equivalent resistance and capacitance are acquired.
-
Unless specified in the list below, the default conditions will be applied.
-
Obtain this session's project file. (Right-click and choose 'Save link as')
-
Results will vary depending on Femtet version and the PC environment.
Analysis Space
|
Item |
Settings |
|
Analysis Space |
3D |
|
Model Unit |
mm |
Analysis Conditions
|
Item |
Settings |
|
Solver |
Electric Analysis [Coulomb] |
|
Analysis Type |
Harmonic Analysis |
|
Options |
N/A |
The frequency of the applied voltage is set as belows.
|
Tab |
Setting Item |
Settings |
|
Harmonic analysis |
Frequency |
1X106 [Hz] |
|
Sweep Type |
Select [Linear Step by Number of Divisions] |
Model
An U- shaped conductor is created with solid bodies.
Different electric potentials are set on the ends of the U shape conductor.
Body Attributes and Materials
The material is copper.
|
Body Number/Type |
Body Attribute Name |
Material Name |
|
1/Solid |
U |
008_Cu * |
* Available from the material DB
Boundary Condition
The end faces of the U-shaped conductor are set with Electric wall boundary condition. They have different electric potentials.
|
Boundary Condition Name/Topology |
Tab |
Boundary Condition Type |
Settings |
|
V0/Face |
Electric |
Electric Wall |
Electric Potential Specified 0[V] |
|
V1/Face |
Electric |
Electric Wall |
Electric Potential Specified 1[V] |
|
Outer Boundary Condition * |
Electric |
Open Boundary |
|
To set Outer Boundary Condition, go to the [Model] tab
and click [Outer Boundary Condition]
.
Results
To see the results, go to the [Results] tab,
and click [Show Numerical Summary Table]
.
The calculated resistance is 5.816e-5 [ohm] as shown below.
The calculated capacitance is 1.447e-14 [F] as shown below.

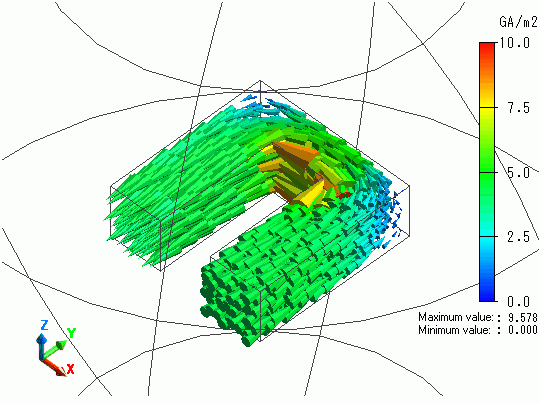

The vectors of the current density are shown below.

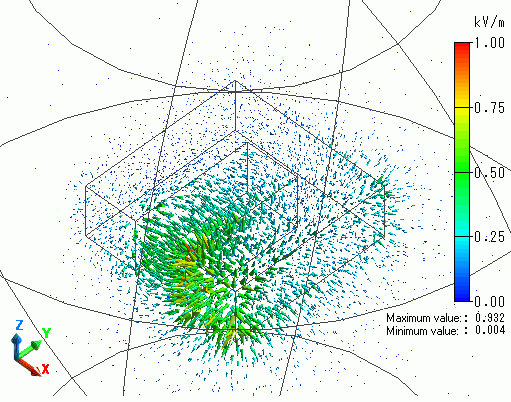

The vectors of the electric field are shown below.
