Electric Analysis Tab

Analysis conditions for the electric analysis are set on this tab. The solver is Coulomb.
It is in the [Analysis Condition Setting] dialog box. See also [How to Set Analysis Condition].

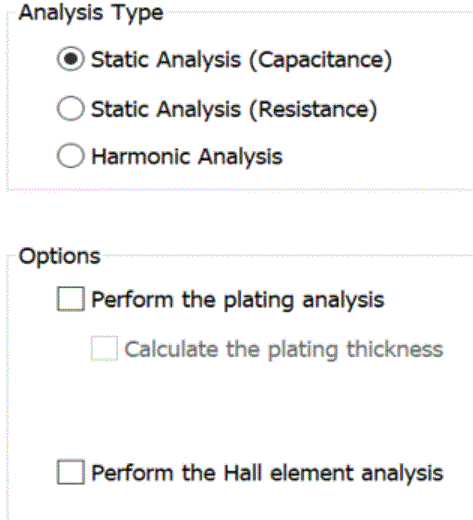

Setting Item

Notes

Analysis Type

Static analysis (capacitance)

Constant load or voltage is applied.

Capacitance is analyzed.

Static analysis (resistance)

Constant load, voltage or current is applied.

In the case of plating analysis or Hall element analysis, only resistance is analyzed.

Harmonic analysis

Solves the response to sinusoidal load, voltage (AC) and current (AC).

Options

Notes

Perform the plating analysis

Executes the plating analysis.
You may select Calculate the plating thickness and set the plating time.

Perform the Hall element analysis

Executes the Hall element analysis.

The Relating Tabs

The relating tabs are [External Magnetic Field] tab, [Open Boundary] tab, [Harmonic Analysis] tab, and [High-Level Setting] tab.

How to Modify Analysis Conditions

To modify the analysis conditions, go to [Model] tab for

and click [Analysis Condition] . The dialog box will appear.
