02.Set up the Output of Femtet Results

The Femtet results need to be properly set up for use with JMP at the "Result Output Setting" tab in the parametric analysis.

The details are explained at "Result Setting".
As we are interested in the oscillation frequency, it needs to be output as follows:

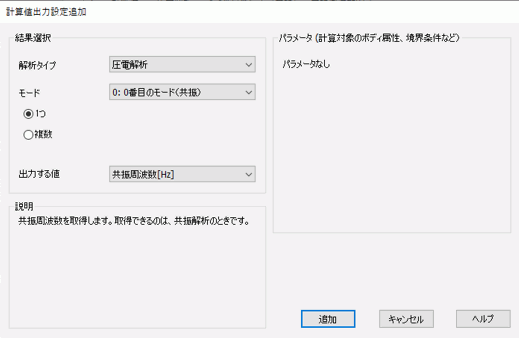

Go to the [Result Output Setting] tab on Parametric Analysis, click the [Add (result)] button.After setting as shown in the right, and press the [Add] button

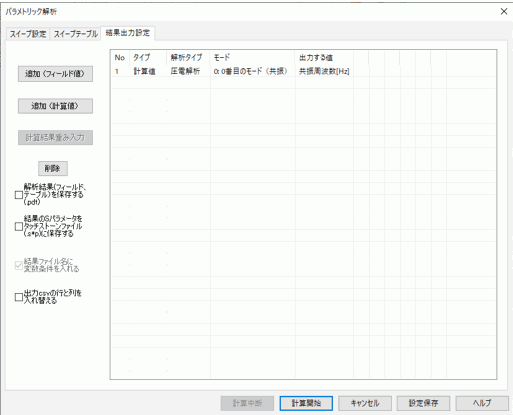

Confirm that the [Result Output Setting] tab appears as shown in the right.
