Example 4: Pressure

General

• A piezoelectric disc is pressurized.


• The electric potential of floating electrode and the displacement are solved.


• Unless specified in the list below, the default conditions will be applied.


• Obtain this session's project file. (Right-click and choose 'Save link as')




• Results will vary depending on Femtet version and the PC environment.



Analysis Space

Item	Settings
Analysis Space	3D
Model Unit	mm



Analysis Conditions

Item	Settings
Solver	Piezoelectric Analysis [Rayleigh]
Analysis Type	Static Analysis
Options	N/A

Model

Body Attributes and Materials

Body Number/Type	Body Attribute Name	Material Name
0/Solid	piezo	000_P-4 *
1/Solid	metal	001_Al *

* Available from the material DB

Boundary Conditions

Boundary Condition Name/Topology	Tab	Boundary Condition Type	Settings
fix/Face	Mechanical	Displacement	Select all UX, UY, and UZ. UX=0, UY=0, UZ=0
p/Face	Mechanical	Pressure	1 [Pa]
earth/Face	Electric	Electric Wall	Electric Potential Specified: Electric Potential 0 [V]
hot/Face	Electric	Electric Wall	Floating Electrode

Results

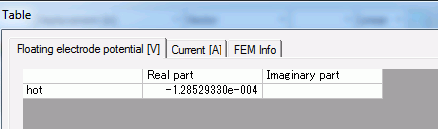

To view the calculation results, go to the [Results] tab





 and click [Show Numerical Summary Table] .

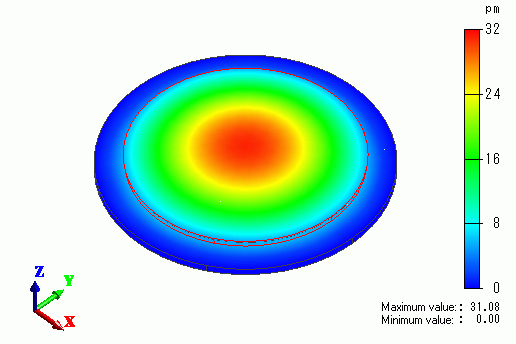

The displacement of the piezoelectric disc is shown. The color contour indicates the z component of the displacement.
