Isosurface Contour

On the [Results] tab, go to

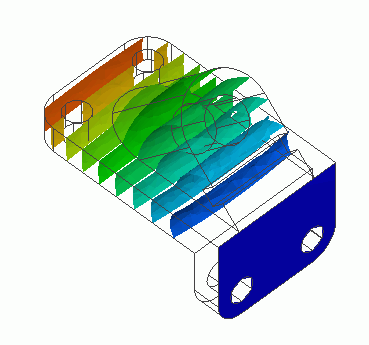

click the [Isosurface Contour] . The field will show up with the contour of isosurfaces based on the field values.

The color scale shows the colors associated with field values.

The inside of the model is shown by the isosurface contour,

while the gradation contour shows just the outside of the model.

Isosurface Contour Color Scale

Results to Display

In the selection box below, select the Field Type, Component, Phase, and Scale.

Click [Graphics Setup] . The dialog to set up the graphics will show up.

will show up.

[Contour] tab is for the setting of contour display.

The minimum value is blue and the maximum value is red.

The values in between will have the color progressing from blue to red.

The minimum/maximum values can be edited

to suit your requirement.

The default is 10. It can be edited at Division Setting.

Further details are explained at each dialog's Help.
