Gradation Contour

On the [Results] tab, go to

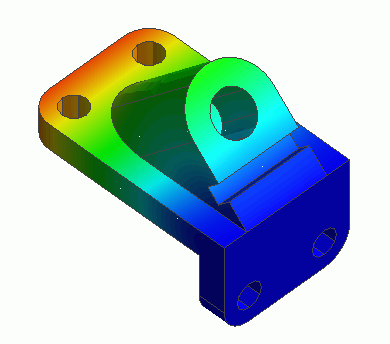

click the [Gradation Contour] . The field will show up with the contour of color progression based on the field values.

The color scale shows the colors associated with field values.

Gradation Contour Color Scale

In the selection box below, select the Field Type, Component, Phase, and Scale.

Click [Graphics Setup] . The dialog to set up the graphics will show up.

will show up.

[Contour] tab is for the setting of contour display.

The minimum value is blue and the maximum value is red.

The values in between will have the color progressing from blue to red.

The minimum/maximum values can be edited

to suit your requirement.

Further details are explained at each dialog's Help.
