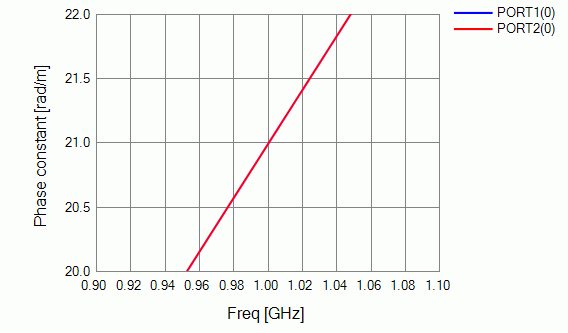

Dispersion Curve

Obtain the propagation constants with the waveguides calculation at ports in 3D harmonic electromagnetic analysis.

Then, plot the dispersion curves.

On the [Results] tab, go to , click ▼ at the side of [Chart] .

Select [Dispersion Curve] on the submenu.

Note: This function is not available for the results of waveguide analysis.
