Number
Example Title
Simulation Image
Setup Condition and Function

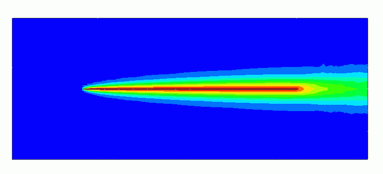

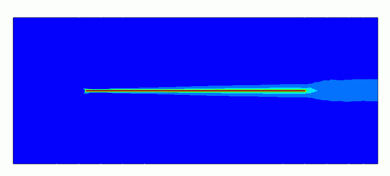

Heat Radiation of Plate (Laminar Flow) by Forced Convection
Steady-state Analysis
Laminar Flow
Heat Radiation of Plate (Turbulent Flow) by Forced Convection
Steady-state Analysis
Turbulent Flow

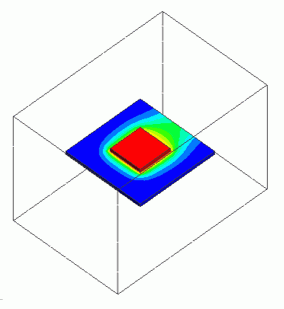

Heat Radiation of IC by Forced Convection
Steady-State Analysis
Turbulent Flow

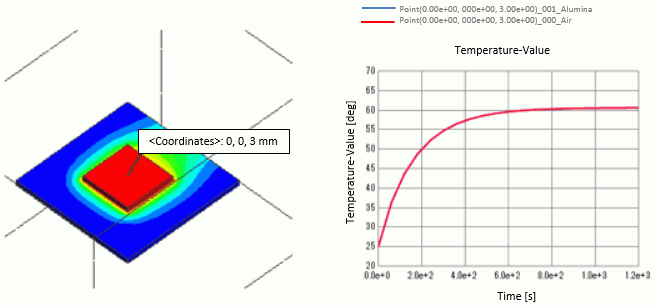

Heat Radiation of IC by Forced Convection (Transient Analysis)
Steady-state Analysis
Thermal-transient Analysis
Turbulent Flow
Results Import (Heat Density)
Steady-state Analysis
Turbulent Flow
Results Import (Heat Density)

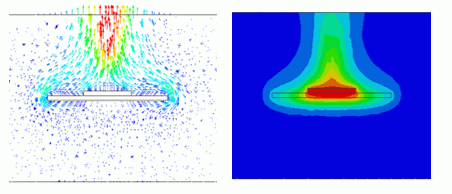

Cooling of IC by Natural Convection
Steady-state Analysis
Turbulent Flow
Buoyancy Taken into Account (Natural Convection)

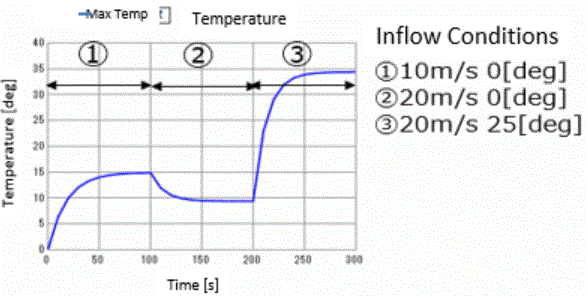

Temperature Change of a Heating Plate by Changing Velocity and Temperature of Incoming Flow
Transient Analysis
Turbulent Flow
Time-dependent Inflow Velocity
Time-dependent Inflow Temperature
Transient Analysis of Cooling of IC with Initial Values Obtained in the Steady-state Analysis
Results Import (Initial Values for Fluid-thermal Analysis)
Transient Analysis
Turbulent Flow
Buoyancy Taken into Account (Natural Convection)

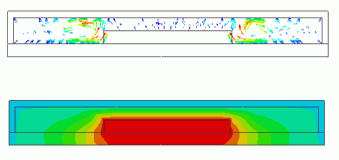

Cooling of IC inside a Case by Natural Convection
(Closed and Open Spaces)
Steady-state Analysis
Turbulent Flow
Buoyancy Taken into Account (Natural Convection)
Natural Convection in the Closed Space
Cooling of IC inside the Case by Natural Convection
(Closed Space and Natural Convection Boundary Condition)
Steady-state Analysis
Turbulent Flow
Buoyancy Taken into Account (Natural Convection)
Natural Convection in the Closed Space
Natural Convection Boundary Condition

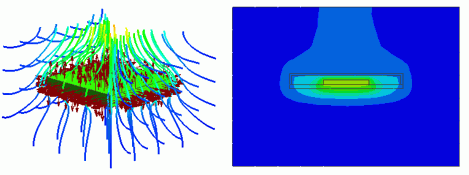

Cooling of IC by Heat Sink
Steady-state Analysis
Turbulent Flow
Buoyancy Taken into Account (Natural Convection)
Complex Flows of Forced Convection and Natural Convection
Transient Analysis
Turbulent Flow
Forced Convection
Buoyancy Taken into Account (Natural Convection)

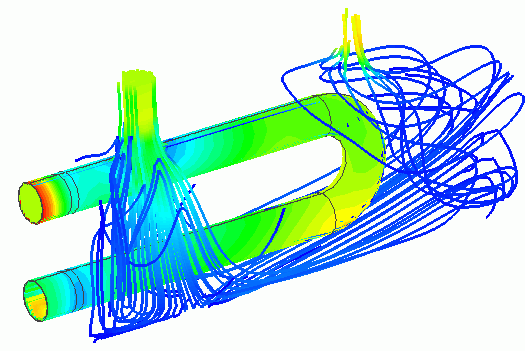

Heat Exchanger
Steady-state Analysis
Turbulent Flow
Simultaneous Display of Temperature Contours and Streamlines

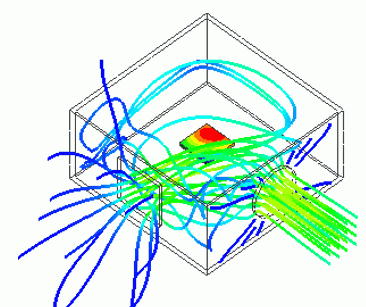

Cooling by Fan
Steady-state Analysis
Turbulent Flow
Internal Flow Specified (Fan)
Radiation and Cooling of IC inside a Case by Natural Convection
(Closed and Open Spaces)
Steady-state Analysis
Turbulent Flow
Buoyancy Taken into Account (Natural Convection)
Natural Convection in the Closed Space
Surface-to-Surface Radiation

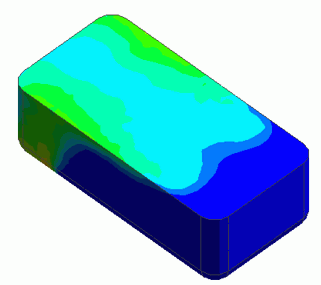

Thermal-Fluid Analysis of Porous Medium
Fluid Steady-state Analysis
Thermal-transient Analysis
Turbulent Flow
Porous Medium
