Incident Wave (Plane Wave) Tab

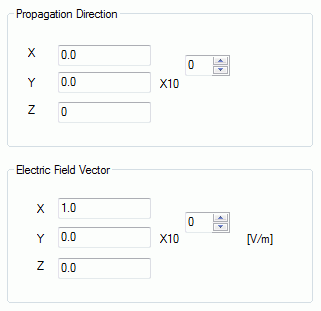

The incident wave (plane wave) is set on this tab for the harmonic electromagnetic analysis.
The tab becomes active when [Incident wave (plane wave)] is selected in Options for electromagnetic analysis dialog box.
|
Setting Item |
Notes |
|
Propagation Direction |
Electromagnetic Analysis: Specifies the propagation direction of electromagnetic waves by vector. Acoustic Analysis: Specifies the propagation direction of sound waves by vector.
|
|
Electric Field Vector |
Electromagnetic Analysis: Specifies the direction of electric field by vector. This vector should be on the plane perpendicular to the propagation direction. Acoustic Analysis: Now shown. |
|
Pressure (Sound Pressureļ¼ |
Electromagnetic Analysis: Not shown. Acoustic Analysis: Select either the sound pressure level [dB] or sound pressure [Pa], and enter the value.
|
