04.Set the Body Attributes and the Material Properties

We assign names to the body attributes and the material properties. Various parameters associated with them will be set up here, too.

The body attribute is required to be set on each body. Various specific data, such as the thickness in the 2D analysis, the width of the wire element, the coordinates for anisotropic material, can be set on the body attribute.

Body attribute is distinguished by its name. Therefore it is not allowed to assign the same name to the different body attributes.


Material property constitutes the body. The material data might vary depending on the simulation you try.

Material property is distinguished by its name. Therefore it is not allowed to assign the same name to the different material data.



Since [Automatic Fluid Domain Creation] automatically creates the external fluid domain, setting a body attribute and material property of the fluid is not required.

Accordingly, set only the solid domain.

To set the material of the fluid domain individually, go to the [Fluid Analysis] tab, click [Automatic Fluid Domain Creation], and specify therein.

Procedure

  1. Assign a name to the substrate.

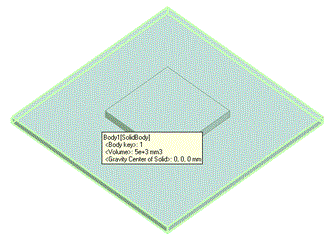

    Highlight the substrate on the modeling window     and click to select.


Click

Highlight





Selected




  1. On the [Attribute] context tab
    ,
    click [Body Attribute/Material Property] .

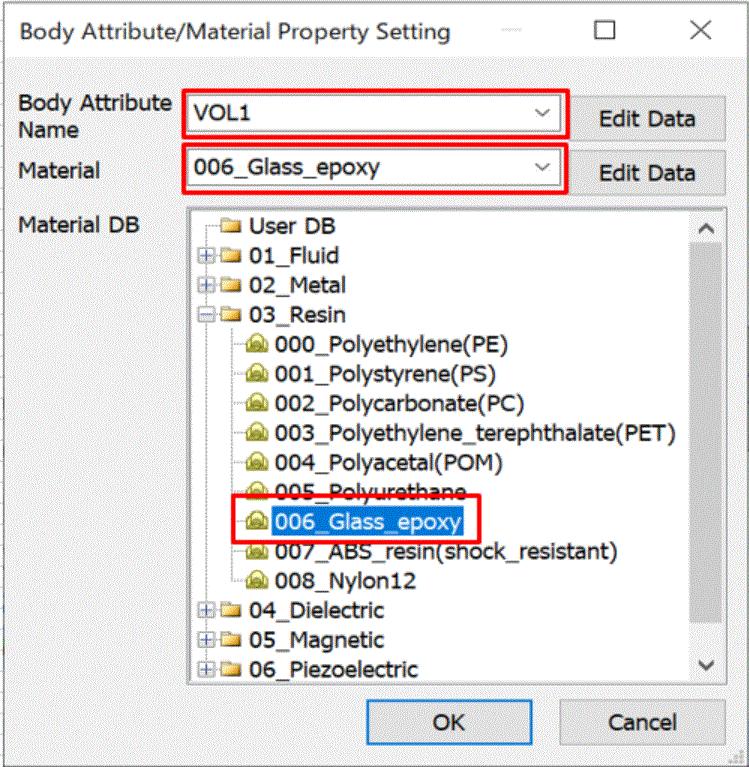

  1. In the [Body Attribute/Material Property Setting] dialog box,

    enter Body Attribute Name: VOL1

    select [03_Resin] on Material DB and select [006_Glass Epoxy]

    Then click


  2. Any name is acceptable.


4. Assign a name to the heat source (VOL2).

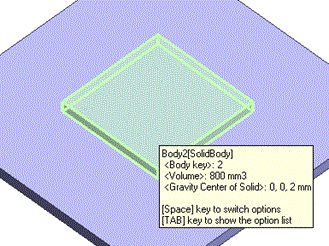

Click on the heat source on the modeling window.


  • To select a particular body out of several overlapping bodies, try the following methods:


    • Space Key Method

      Rest the mouse pointer on the overlapping area, and press the <Space> key.
      Body selection will change. The left-click will fix the selection.


    • List Selection Method

      Rest the mouse pointer on the overlapping area, and press the <Tab> key.
      The body selection list will appear. Select the body of your interest and left-click to fix the selection.



      For more information, see How to Select Bodies and Topologies
      where you will find [Clicking the Mouse] and [List Selection Method].







Click

Highlight





Selected

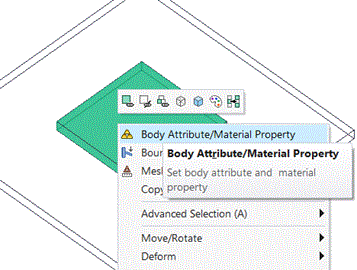

  1. Right-click to open the menu, and select [Body Attribute/Material Property].

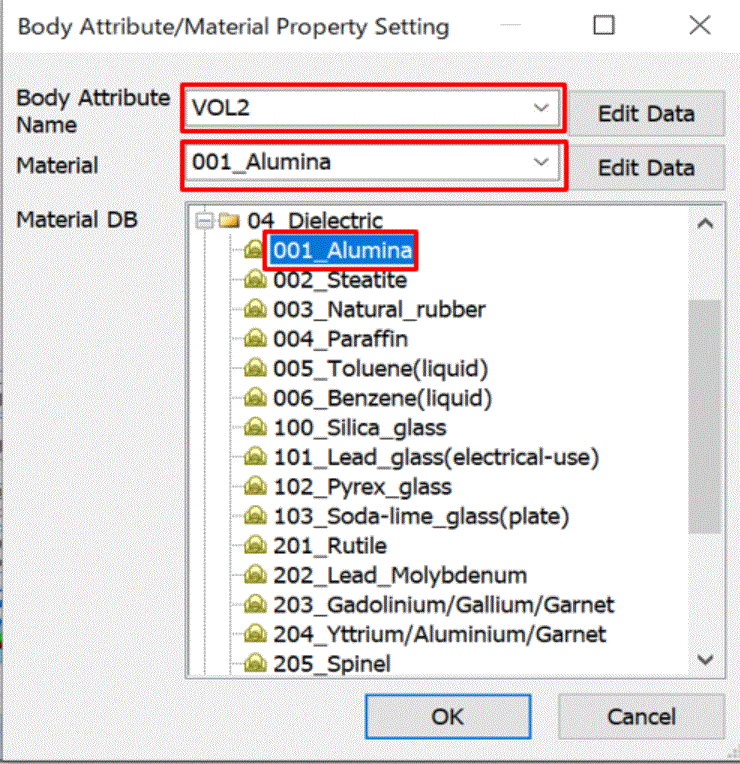

  1. In the [Body Attribute/Material Property Setting] dialog box,

    enter Body Attribute Name: VOL2,

    select [04_Dielectric Material] on material DB and select [001_Alumina].

    Then click at the side of Body Attribute Name.


  2. Any name is acceptable.

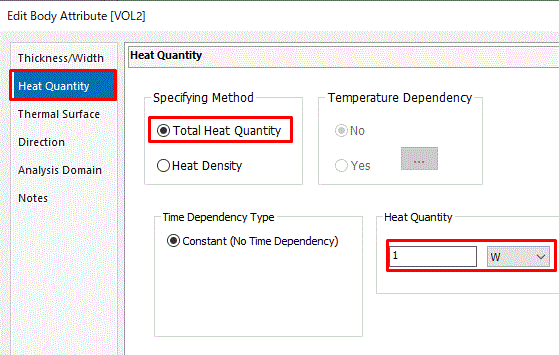

  1. In the [Edit Body Attribute [VOL2]] dialog box,

    go to the [Heat Quantity] tab,

    and enter Total Heat Quantity: 1[W]

    Click .

    Then click in the [Body Attribute/Material Property Setting] dialog box and exit.

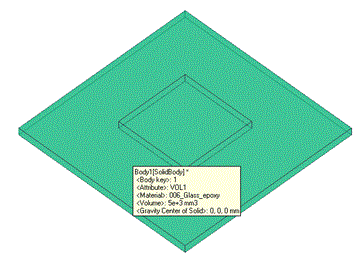

The body attributes and the material properties have been set.
