02.Create a Model

Two boxes for the substrate (VOL1) and the heat source (VOL2) are created.

Procedure

On the [Model] tab, go to , click [Solid], and select [Box [Specify Length]] on the submenu.

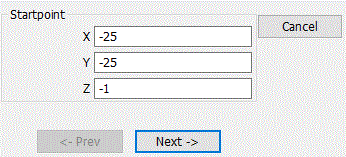

Designate the startpoint. In the parameter input dialog box, enter Startpoint (X: -25, Y: -25, Z: -1) and click . Tips on the parameter input dialog box If the input value is nil, you don't need to enter 0 in the entry field. The blank is acceptable. Press the <Tab> key to hop around the items in the dialog box. Press the <Enter> key on to proceed to the next setting. Another way to input parameters Instead of the numerical entry explained above, you may click on the target coordinates on the modeling window.

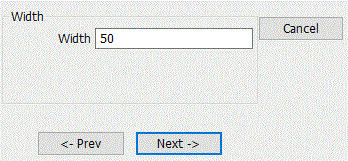

Set the width. Enter Width: 50 and click .

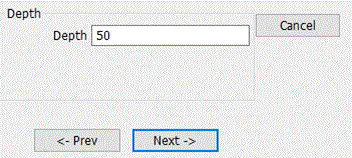

Set the depth. Enter Depth: 50 and click .

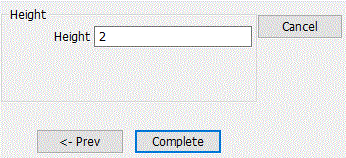

Set the height. Enter Height: 2 and click .

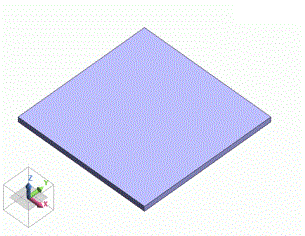

Click in the parameter input dialog box and exit. It is also possible to exit with the <Esc> key. The box for the substrate (VOL1) has been created. To fit the model on the modeling window, go to the [Model] tab, and click [Fit] on . See [Viewpoint Operation] for the details.

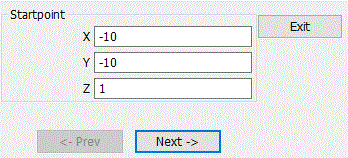

Create another box. On the [Model] tab,go to , click [Solid], and select [Box [Specify Length]] on the submenu. In the parameter input dialog box, enter Startpoint (X: -10, Y: -10, Z: 1) and click .

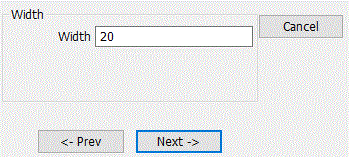

Set the width. Enter Width: 20 and click .

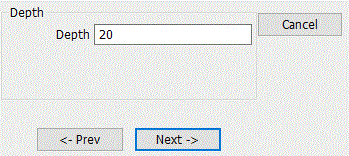

Set the depth. Enter Depth: 20 and click .
Set the height. Enter Height: 2 and click .
Click in the parameter input dialog box and exit. It is also possible to exit with the <Esc> key. The box for the heat source (VOL2) has been created.
You can undo or redo the operation. The operations can be changed as follows; In the click [Undo] to undo the modeling or attribute operation. click [Redo] to redo the modeling or attribute operation.
